STTH5R06G-TR

STTH5R06G-TR Overview

Product belongs to the STTH5R06 series. This product is categorized as Ultra Fast Recovery Rectifiers Tape & Reel (TR) is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 20μA @ 600V Current-Reverse-Leakage-Vr 1. Vf Max 2.9V @ 5A is the Voltage-Forward; Maximum DC reverse voltage 600V The 5A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 2.9 V VR Reverse Voltage of 600 V Ir-Reverse-Current is 20 uA. If-Forward-Current is 5 A. Maximum Surge Current: 50 A

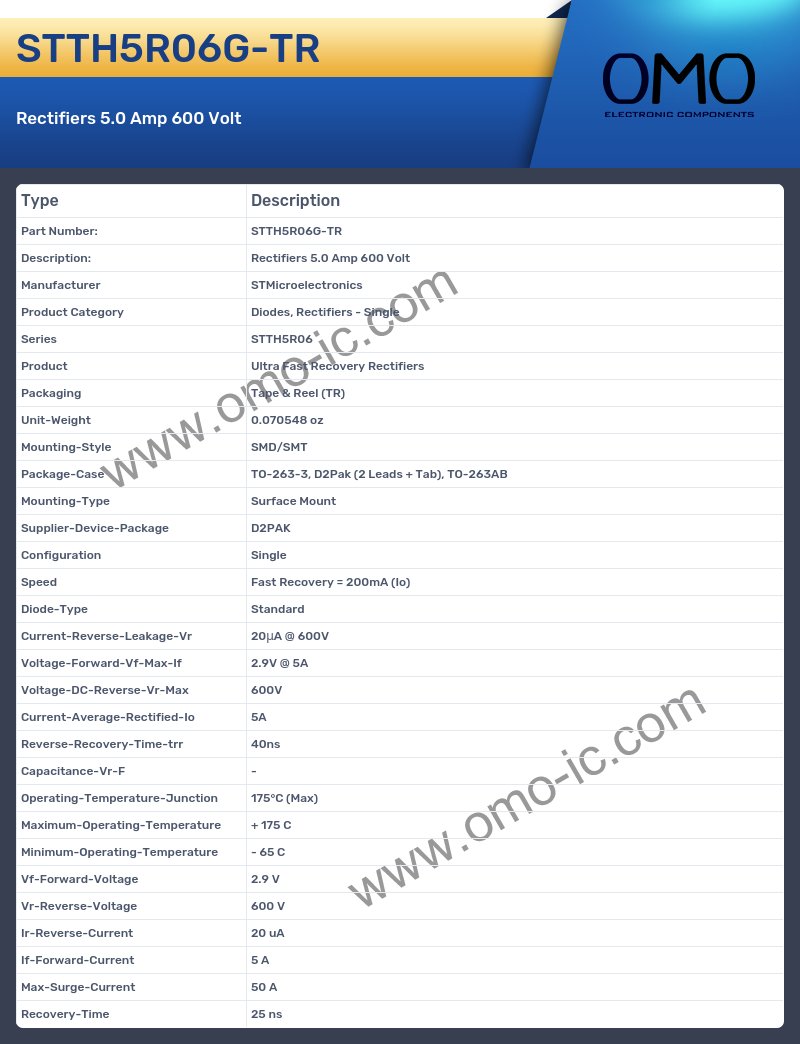

STTH5R06G-TR Image

STTH5R06G-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH5R06
• Product Ultra Fast Recovery Rectifiers
• Packaging Tape & Reel (TR)
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 20μA @ 600V
• Voltage-Forward-Vf-Max-If 2.9V @ 5A
• Voltage-DC-Reverse-Vr-Max 600V
• Current-Average-Rectified-Io 5A
• Reverse-Recovery-Time-trr 40ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 2.9 V
• Vr-Reverse-Voltage 600 V
• Ir-Reverse-Current 20 uA
• If-Forward-Current 5 A
• Max-Surge-Current 50 A
• Recovery-Time 25 ns
