STW56NM60N

STW56NM60N Overview

Product belongs to the N-channel MDmesh series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 300 W This product's 25 V. The ID of continuous drain current is 28 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 60 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 150 nC.

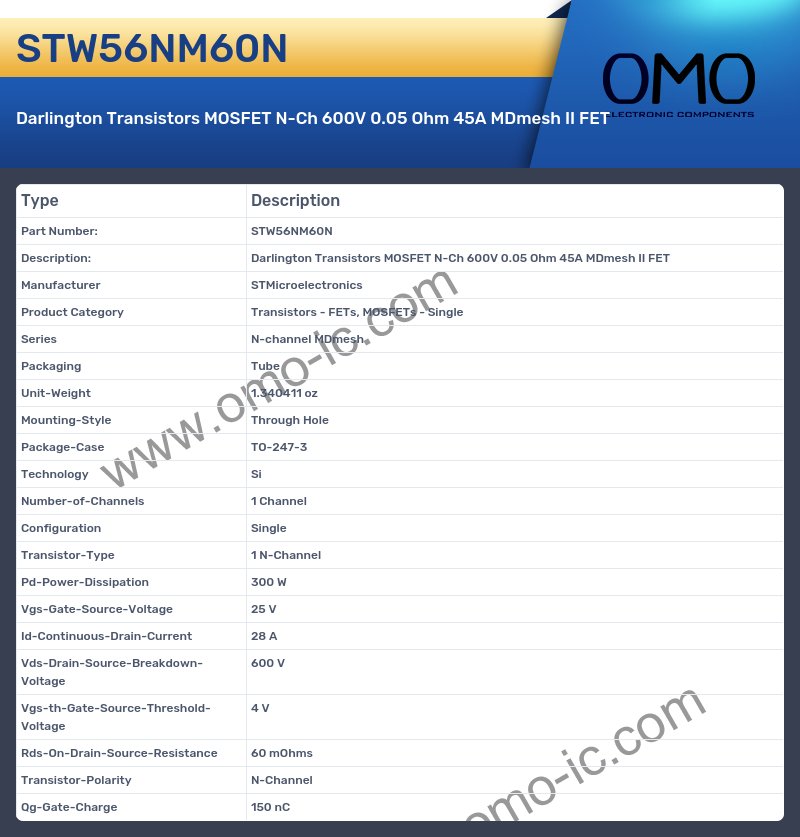

STW56NM60N Image

STW56NM60N Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series N-channel MDmesh
• Packaging Tube
• Unit-Weight 1.340411 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 300 W
• Vgs-Gate-Source-Voltage 25 V
• Id-Continuous-Drain-Current 28 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 60 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 150 nC
