TC1189TECTTR Overview

Product belongs to the - series. Tape & Reel (TR) is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 3.15V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.571 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 3.15 V Maximum Input Voltage: 6 V Output current: 120 mA The product's + 3.65 V is 5.1 V. Load regulation is 0.01 % / mA. The voltage regulation accuracy of this product is 0.5 %. Input bias current of 50 uA The 0.0011 V at 1 mA. The maximum 120 mV is 360 mV. This product's 0.001 % / V is 0.01 %/V.

TC1189TECTTR Image

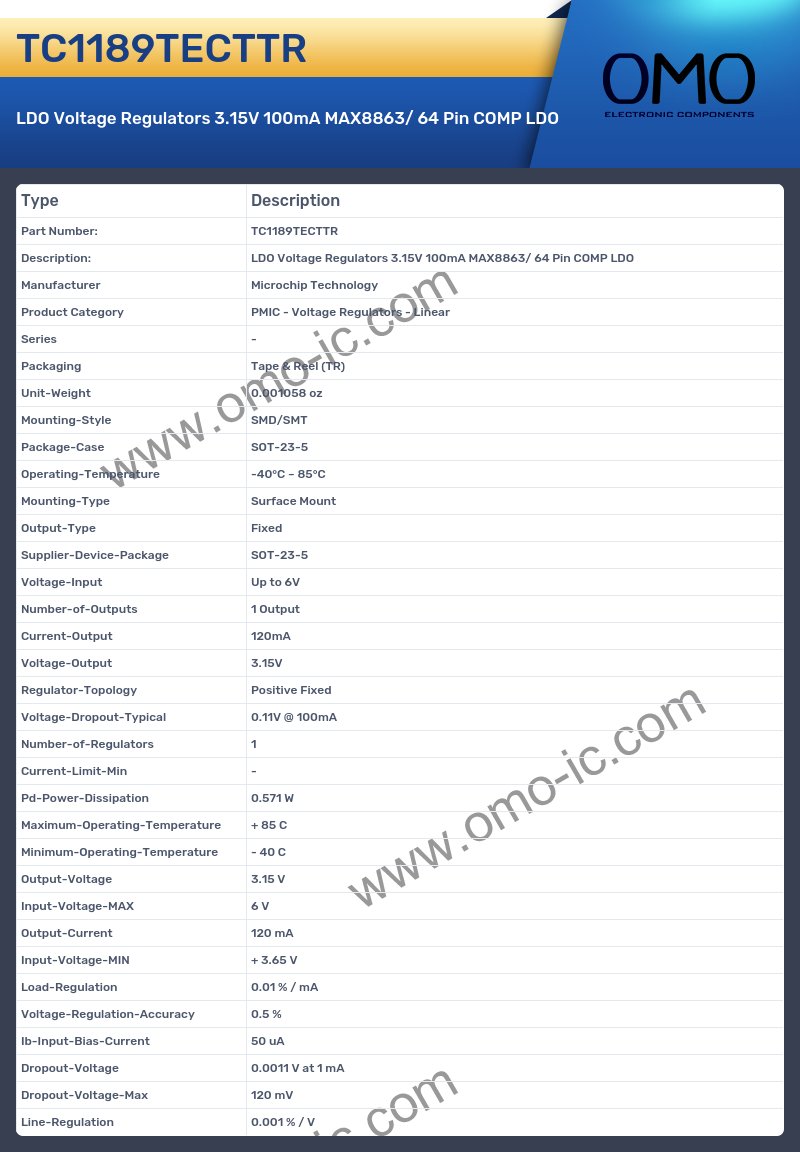

TC1189TECTTR Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Packaging Tape & Reel (TR)
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 120mA
• Voltage-Output 3.15V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.11V @ 100mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 0.571 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.15 V
• Input-Voltage-MAX 6 V
• Output-Current 120 mA
• Input-Voltage-MIN + 3.65 V
• Load-Regulation 0.01 % / mA
• Voltage-Regulation-Accuracy 0.5 %
• Ib-Input-Bias-Current 50 uA
• Dropout-Voltage 0.0011 V at 1 mA
• Dropout-Voltage-Max 120 mV
• Line-Regulation 0.001 % / V
