TC1272AZVNBTR

TC1272AZVNBTR Overview

Product belongs to the - series. Type: Simple Reset/Power-On Reset Tape & Reel (TR) is the packaging method for this product SMD/SMT Mounting-Style SOT-23-3L Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Active Low Push-Pull Supplier device package: SOT-23-3 The Push-Pull, Totem Pole. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 2.32V. Power-off control: 320 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 9 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1 V This product includes No Watchdog This product's 1.2 V to 5.5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 560 ms is 200 ms. The 2.35 V is 2.35 V. 2.28 V is set to 2.29 V.

TC1272AZVNBTR Image

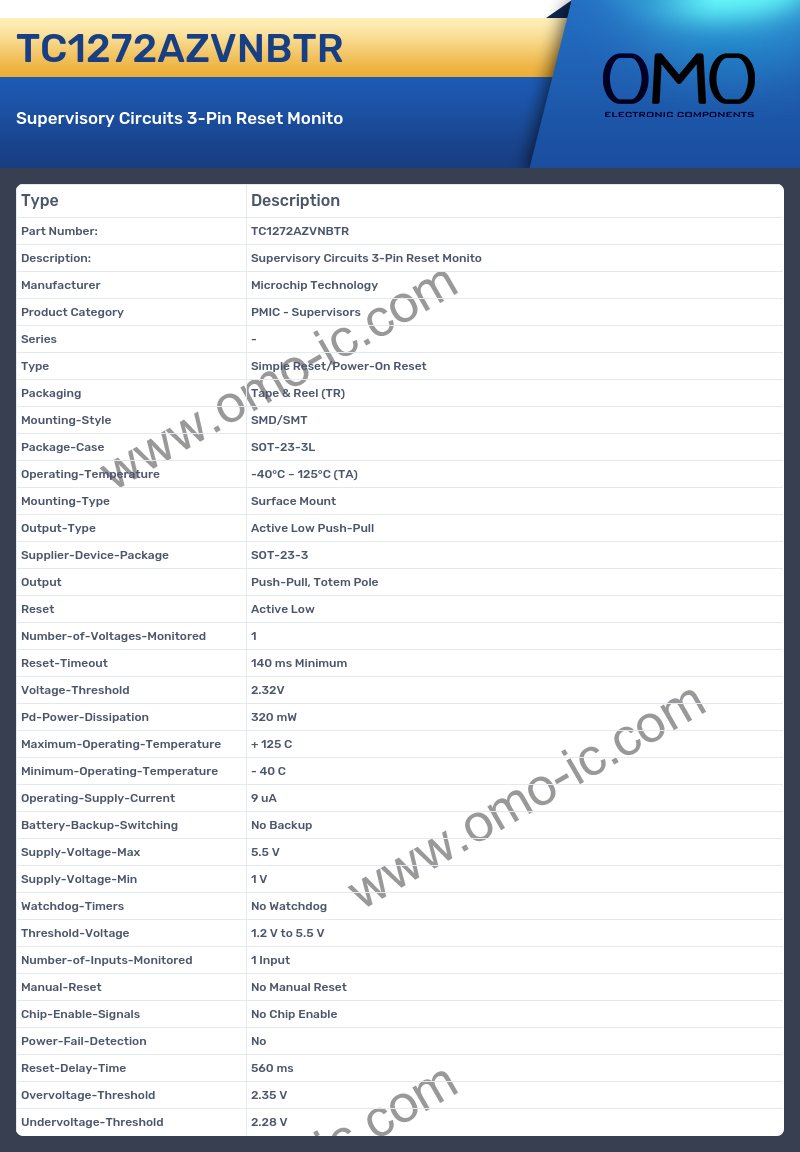

TC1272AZVNBTR Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Supervisors
• Series -
• Type Simple Reset/Power-On Reset
• Packaging Tape & Reel (TR)
• Mounting-Style SMD/SMT
• Package-Case SOT-23-3L
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Push-Pull
• Supplier-Device-Package SOT-23-3
• Output Push-Pull, Totem Pole
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 2.32V
• Pd-Power-Dissipation 320 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 9 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 1.2 V to 5.5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 560 ms
• Overvoltage-Threshold 2.35 V
• Undervoltage-Threshold 2.28 V
