TC850CLW

TC850CLW Overview

Product belongs to the - series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.084185 oz SMD/SMT Mounting-Style PLCC-44 The Differential for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 44-PLCC (16.59x16.59) This product's 40. Data-Interface: Parallel 15 bits The Voltage-Supply-Analog is ±5V. The Voltage Supply Digital for this product is ±5V. Configuration MUX-ADC The architecture of this product is Dual Slope . External is the reference type. 1 units Power-off control: 1230 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Number-of-Converters: 1 Converter 40 S/s Sampling Rate Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 0.5 LSB

TC850CLW Image

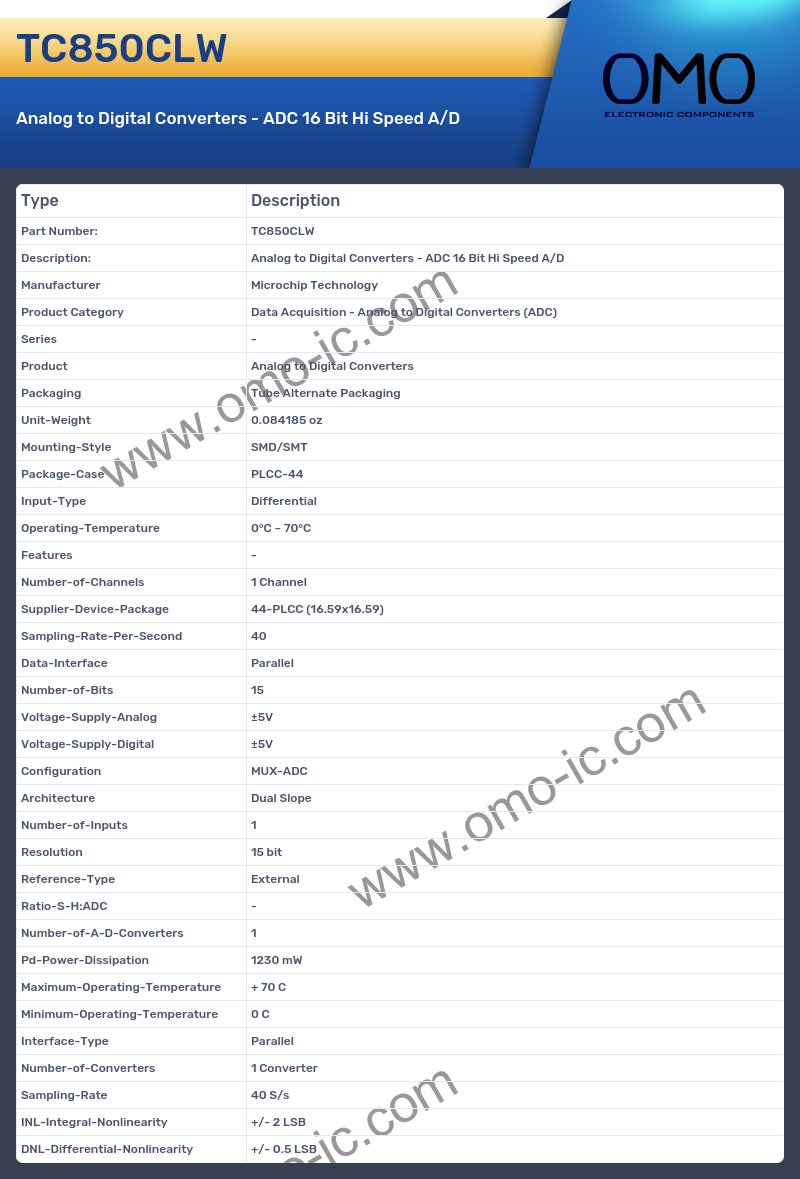

TC850CLW Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series -
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.084185 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-44
• Input-Type Differential
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 44-PLCC (16.59x16.59)
• Sampling-Rate-Per-Second 40
• Data-Interface Parallel
• Number-of-Bits 15
• Voltage-Supply-Analog ±5V
• Voltage-Supply-Digital ±5V
• Configuration MUX-ADC
• Architecture Dual Slope
• Number-of-Inputs 1
• Resolution 15 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 1230 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• Number-of-Converters 1 Converter
• Sampling-Rate 40 S/s
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 0.5 LSB
