TEA6422D

TEA6422D Overview

Product belongs to the TEA6422 series. Type: Bus Controlled Audio Matrix Switch Tube is the packaging method for this product SMD/SMT Mounting-Style SO-28 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Audio Switch. Supplier device package: 28-SO - is 8. Voltage supply source: Analog and digital Single Supply Circuit type: 2 x 6:3 - maximum on-state resistance Voltage supply range: 8 V ~ 11 V This product has a 3mA of 200μA. The - Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 11 V supply voltage for reliable performance. 8 mA is 92 nA.

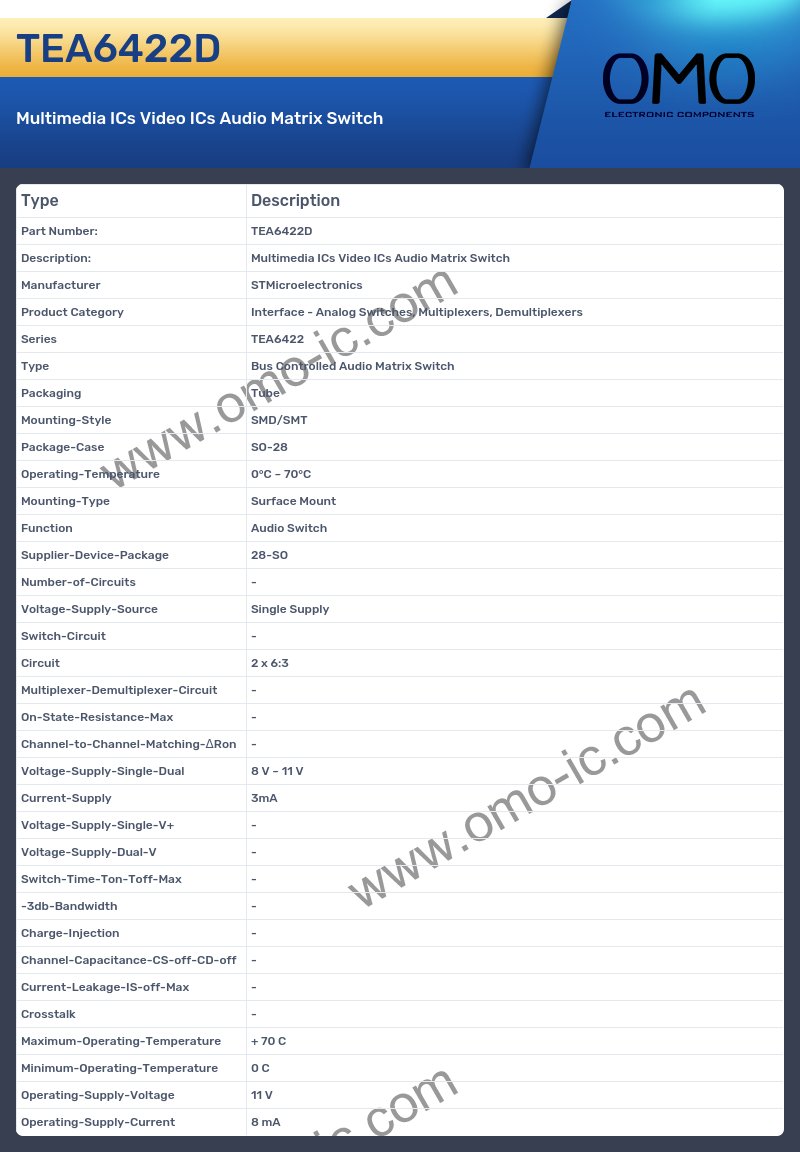

TEA6422D Image

TEA6422D Specifications

• Manufacturer STMicroelectronics
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series TEA6422
• Type Bus Controlled Audio Matrix Switch
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case SO-28
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Function Audio Switch
• Supplier-Device-Package 28-SO
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Switch-Circuit -
• Circuit 2 x 6:3
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max -
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 8 V ~ 11 V
• Current-Supply 3mA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 11 V
• Operating-Supply-Current 8 mA
