TIP110

TIP110 Overview

Product belongs to the - series. Bulk Alternate Packaging is the packaging method for this product Weight of 0.042823 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220 Configuration Single Transistor type: NPN - Darlington Maximum current collector Ic is 2A . Maximum collector-emitter breakdown voltage of 60V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 1A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2.5V @ 8mA, 2A Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is NPN. The 60 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 2 A Minimum hfe for DC collector-base gain is 1000 at 1 A at 4 V 500 at 2 A at 4 V. 1000 uA Maximum Collector Cut-off Current;

TIP110 Image

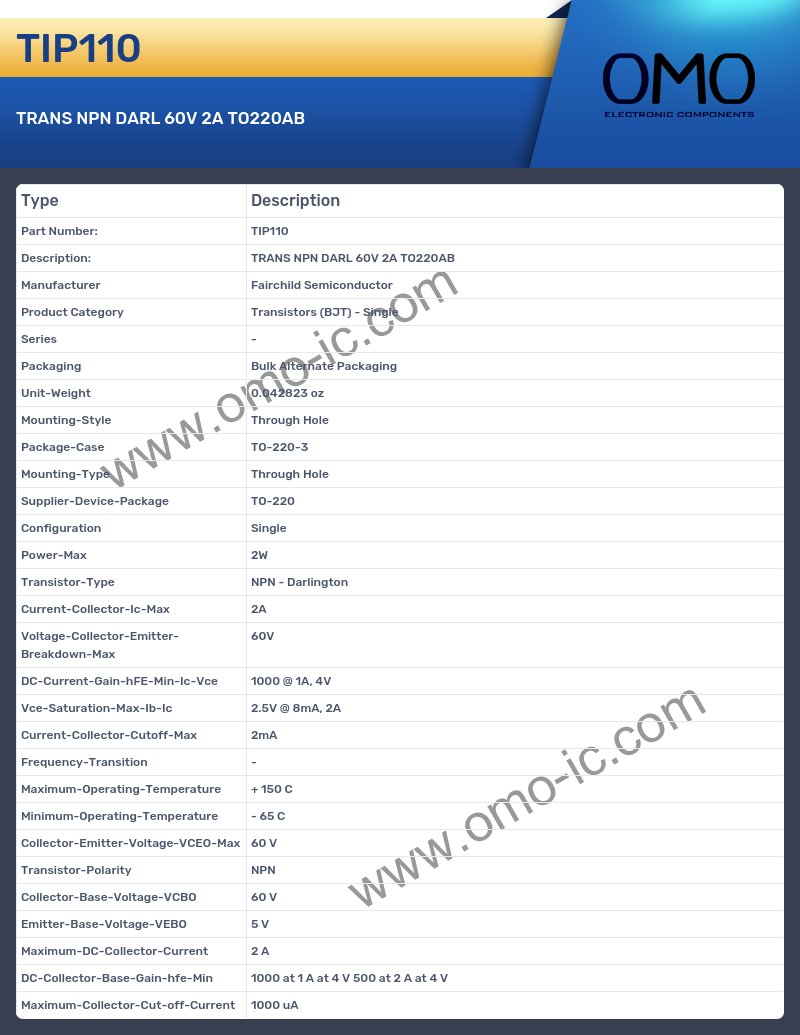

TIP110 Specifications

• Manufacturer Fairchild Semiconductor
• Product Category Transistors (BJT) - Single
• Series -
• Packaging Bulk Alternate Packaging
• Unit-Weight 0.042823 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220
• Configuration Single
• Power-Max 2W
• Transistor-Type NPN - Darlington
• Current-Collector-Ic-Max 2A
• Voltage-Collector-Emitter-Breakdown-Max 60V
• DC-Current-Gain-hFE-Min-Ic-Vce 1000 @ 1A, 4V
• Vce-Saturation-Max-Ib-Ic 2.5V @ 8mA, 2A
• Current-Collector-Cutoff-Max 2mA
• Frequency-Transition -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 60 V
• Transistor-Polarity NPN
• Collector-Base-Voltage-VCBO 60 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 2 A
• DC-Collector-Base-Gain-hfe-Min 1000 at 1 A at 4 V 500 at 2 A at 4 V
• Maximum-Collector-Cut-off-Current 1000 uA
