TIP127

TIP127 Overview

Product belongs to the - series. Bulk Alternate Packaging is the packaging method for this product The TIP127_NL is listed as a Part-Aliase. Weight of 0.042823 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220-3 Configuration Single Transistor type: PNP - Darlington Maximum current collector Ic is 5A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 3A, 3V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 4V @ 20mA, 5A Power-off control: 65 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to - 100 V The transistor polarity is PNP. The - 100 V voltage rating is 40 V. - 5 V rating of 5 V This product is capable of handling a - 5 A continuous collector current. Minimum hfe for DC collector-base gain is 1000. - 2 mA Maximum Collector Cut-off Current;

TIP127 Image

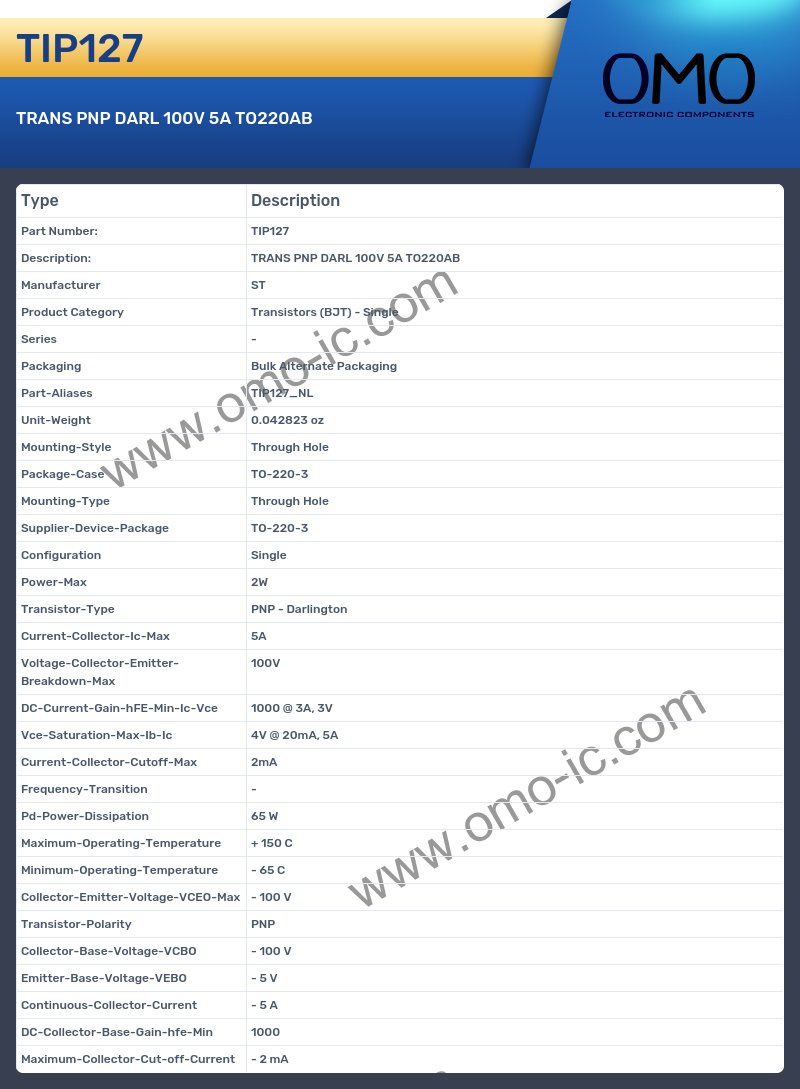

TIP127 Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series -
• Packaging Bulk Alternate Packaging
• Part-Aliases TIP127_NL
• Unit-Weight 0.042823 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220-3
• Configuration Single
• Power-Max 2W
• Transistor-Type PNP - Darlington
• Current-Collector-Ic-Max 5A
• Voltage-Collector-Emitter-Breakdown-Max 100V
• DC-Current-Gain-hFE-Min-Ic-Vce 1000 @ 3A, 3V
• Vce-Saturation-Max-Ib-Ic 4V @ 20mA, 5A
• Current-Collector-Cutoff-Max 2mA
• Frequency-Transition -
• Pd-Power-Dissipation 65 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max - 100 V
• Transistor-Polarity PNP
• Collector-Base-Voltage-VCBO - 100 V
• Emitter-Base-Voltage-VEBO - 5 V
• Continuous-Collector-Current - 5 A
• DC-Collector-Base-Gain-hfe-Min 1000
• Maximum-Collector-Cut-off-Current - 2 mA
