TIP142

TIP142 Overview

Product belongs to the Darlingtons series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 Through Hole mounting type Supplier device package: TO-247-3 Configuration Single Transistor type: NPN - Darlington Maximum current collector Ic is 10A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 5A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 3V @ 40mA, 10A Maximum operating temperature of + 150 C Rated VCEO up to 100 V The transistor polarity is NPN. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 10 A Minimum hfe for DC collector-base gain is 500. 1000 uA Maximum Collector Cut-off Current;

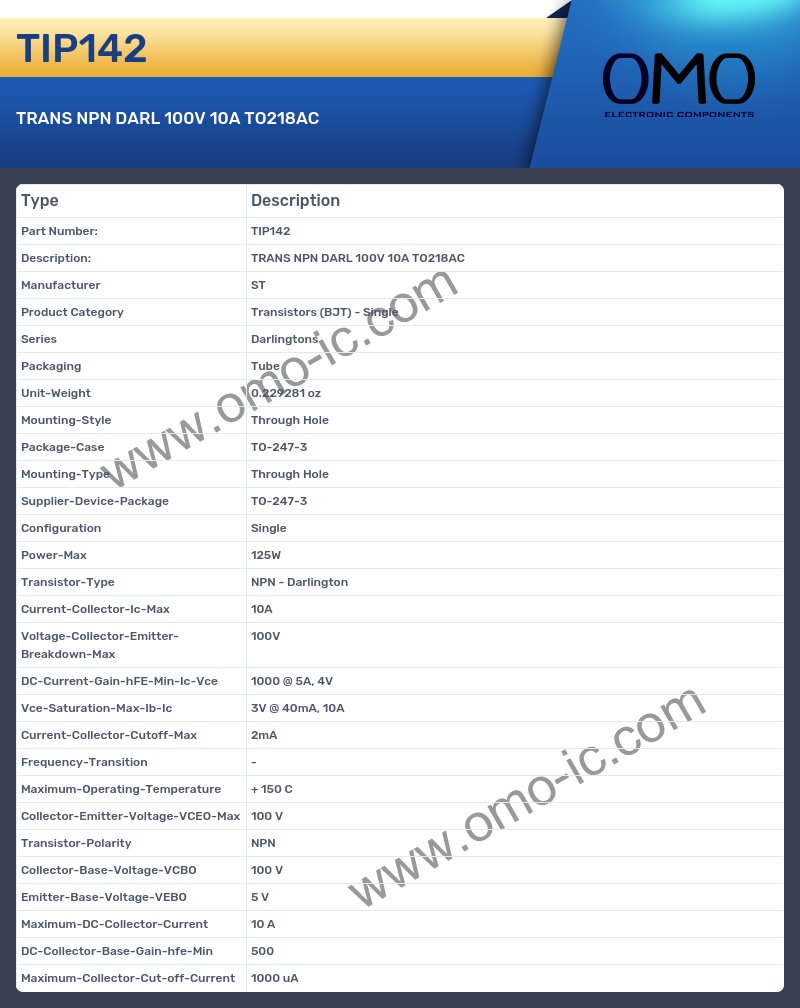

TIP142 Image

TIP142 Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series Darlingtons
• Packaging Tube
• Unit-Weight 0.229281 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247-3
• Configuration Single
• Power-Max 125W
• Transistor-Type NPN - Darlington
• Current-Collector-Ic-Max 10A
• Voltage-Collector-Emitter-Breakdown-Max 100V
• DC-Current-Gain-hFE-Min-Ic-Vce 1000 @ 5A, 4V
• Vce-Saturation-Max-Ib-Ic 3V @ 40mA, 10A
• Current-Collector-Cutoff-Max 2mA
• Frequency-Transition -
• Maximum-Operating-Temperature + 150 C
• Collector-Emitter-Voltage-VCEO-Max 100 V
• Transistor-Polarity NPN
• Collector-Base-Voltage-VCBO 100 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 10 A
• DC-Collector-Base-Gain-hfe-Min 500
• Maximum-Collector-Cut-off-Current 1000 uA
