TIP35CP

TIP35CP Overview

Product belongs to the 500V Transistors series. Tube is the packaging method for this product Weight of 0.238311 oz Through Hole Mounting-Style TO-3P Configuration Single Power-off control: 125000 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 100 V The transistor polarity is NPN. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 25 A Gain-Bandwidth-Product: 3 MHz Minimum hfe for DC collector-base gain is 25 at 1.5 A at 4 V 10 at 15 A at 4 V. 25 of 605.

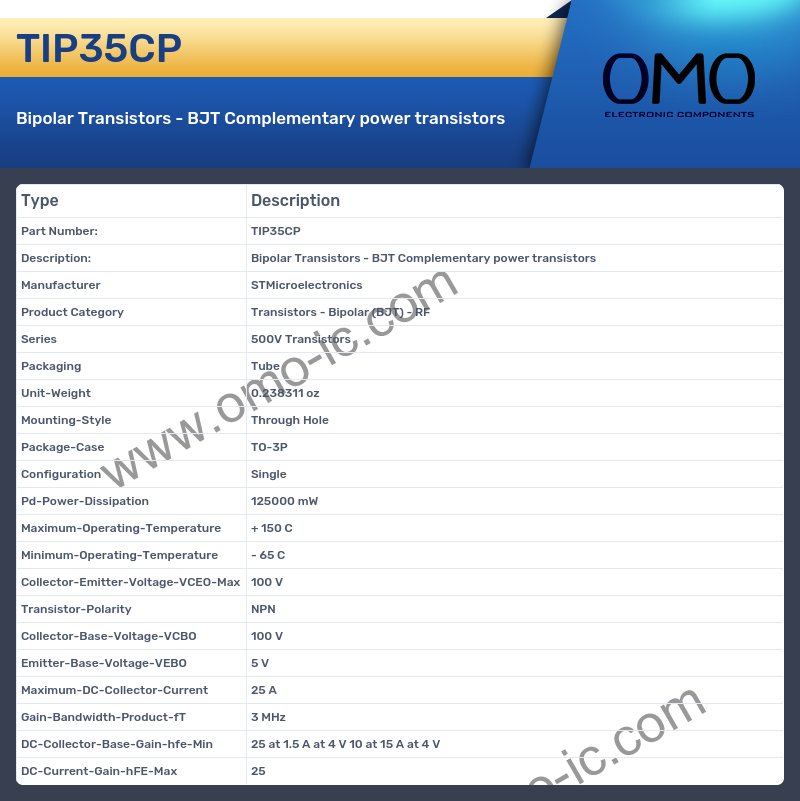

TIP35CP Image

TIP35CP Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - Bipolar (BJT) - RF
• Series 500V Transistors
• Packaging Tube
• Unit-Weight 0.238311 oz
• Mounting-Style Through Hole
• Package-Case TO-3P
• Configuration Single
• Pd-Power-Dissipation 125000 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 100 V
• Transistor-Polarity NPN
• Collector-Base-Voltage-VCBO 100 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 25 A
• Gain-Bandwidth-Product-fT 3 MHz
• DC-Collector-Base-Gain-hfe-Min 25 at 1.5 A at 4 V 10 at 15 A at 4 V
• DC-Current-Gain-hFE-Max 25
