TL431ACDBVT

TL431ACDBVT Overview

Product belongs to the TL431A series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-5 Tolerance of ±1% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.495V . 34 PPM / C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: Adjustable Initial accuracy: 1 % Maximum input voltage of 37 V for Series VREF. Maximum shunt current of 100 mA Maximum output voltage is 36 V . This product has a minimum 600 uA of 50 uA.

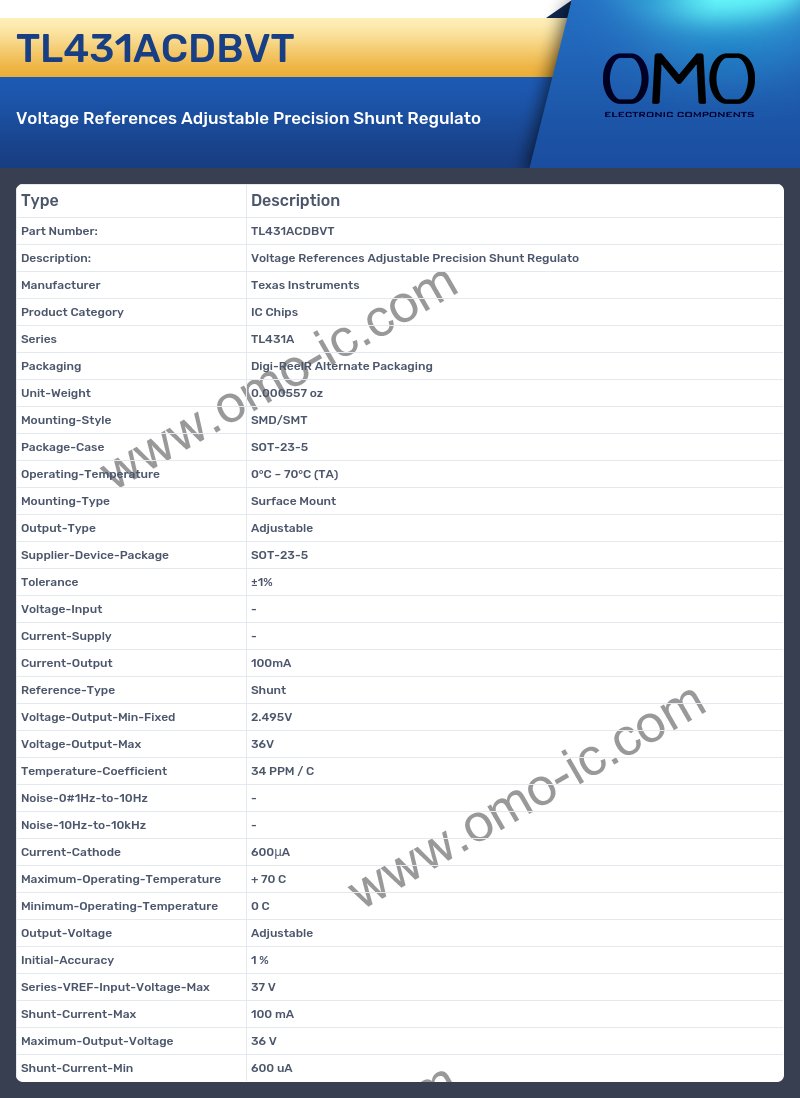

TL431ACDBVT Image

TL431ACDBVT Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series TL431A
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package SOT-23-5
• Tolerance ±1%
• Voltage-Input -
• Current-Supply -
• Current-Output 100mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 2.495V
• Voltage-Output-Max 36V
• Temperature-Coefficient 34 PPM / C
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 600μA
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage Adjustable
• Initial-Accuracy 1 %
• Series-VREF-Input-Voltage-Max 37 V
• Shunt-Current-Max 100 mA
• Maximum-Output-Voltage 36 V
• Shunt-Current-Min 600 uA
