TL431ACZ-AP

TL431ACZ-AP Overview

Product belongs to the TL431A series. Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-92-3 Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Adjustable Supplier device package: TO-92-3 Tolerance of ±1% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.495V . 100 PPM / C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: Adjustable 100 mA is 92 nA. Input Voltage Range: 2.52 V Initial accuracy: 1 % Maximum input voltage of 37 V for Series VREF. Maximum shunt current of 100 mA Maximum output voltage is 36 V . This product has a minimum 1 mA of 50 uA.

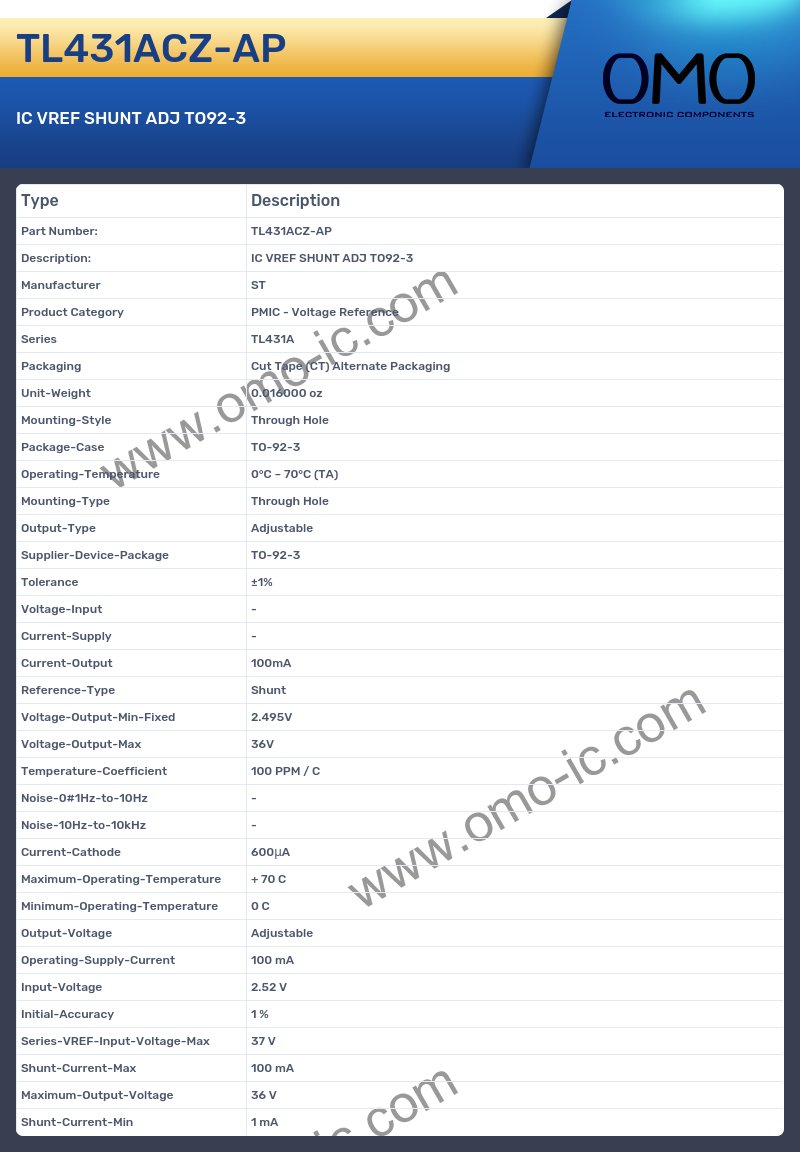

TL431ACZ-AP Image

TL431ACZ-AP Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Reference
• Series TL431A
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-92-3
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Through Hole
• Output-Type Adjustable
• Supplier-Device-Package TO-92-3
• Tolerance ±1%
• Voltage-Input -
• Current-Supply -
• Current-Output 100mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 2.495V
• Voltage-Output-Max 36V
• Temperature-Coefficient 100 PPM / C
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 600μA
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage Adjustable
• Operating-Supply-Current 100 mA
• Input-Voltage 2.52 V
• Initial-Accuracy 1 %
• Series-VREF-Input-Voltage-Max 37 V
• Shunt-Current-Max 100 mA
• Maximum-Output-Voltage 36 V
• Shunt-Current-Min 1 mA
