TL431BQLPR

TL431BQLPR Overview

Product belongs to the TL431B series. Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.007520 oz Through Hole Mounting-Style TO-92-3 Operational temperature range: -40°C ~ 125°C (TA) Through Hole mounting type Output-Type: Adjustable Supplier device package: TO-92-3 Tolerance of ±0.5% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.495V . 34 PPM / C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: Adjustable Initial accuracy: 0.5 % Maximum input voltage of 37 V for Series VREF. Maximum shunt current of 100 mA Maximum output voltage is 36 V . This product has a minimum 600 uA of 50 uA.

TL431BQLPR Image

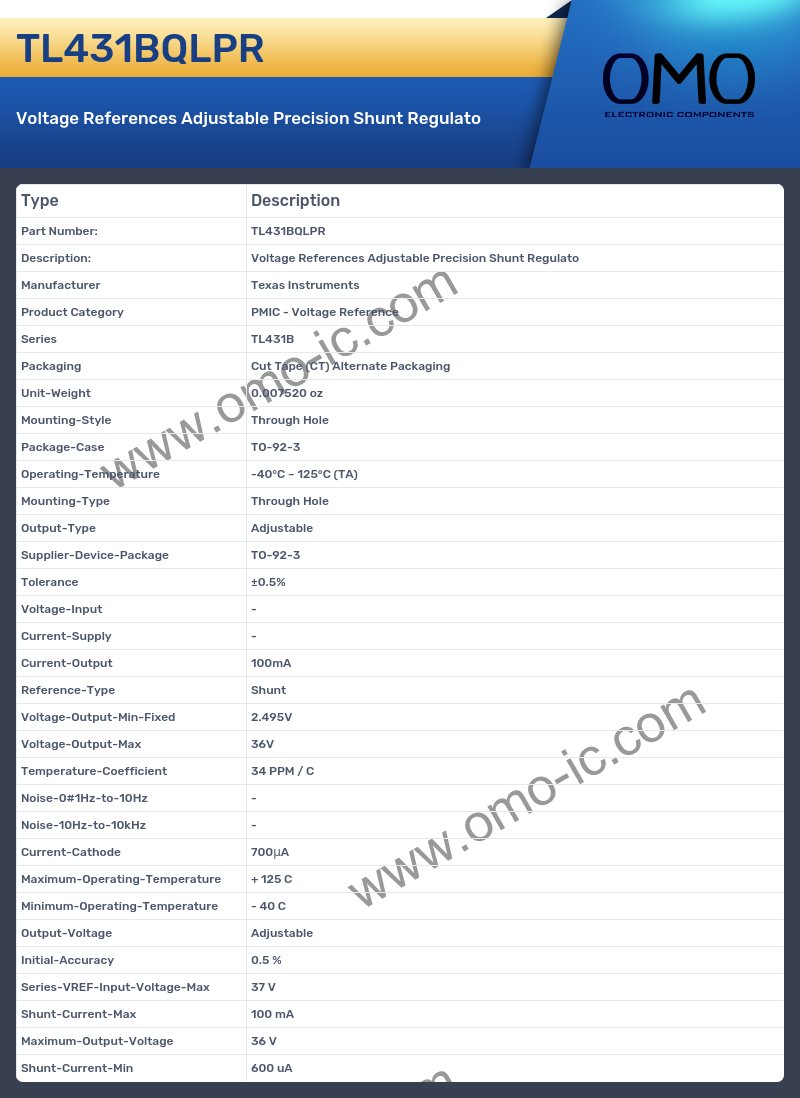

TL431BQLPR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series TL431B
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.007520 oz
• Mounting-Style Through Hole
• Package-Case TO-92-3
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Through Hole
• Output-Type Adjustable
• Supplier-Device-Package TO-92-3
• Tolerance ±0.5%
• Voltage-Input -
• Current-Supply -
• Current-Output 100mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 2.495V
• Voltage-Output-Max 36V
• Temperature-Coefficient 34 PPM / C
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 700μA
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adjustable
• Initial-Accuracy 0.5 %
• Series-VREF-Input-Voltage-Max 37 V
• Shunt-Current-Max 100 mA
• Maximum-Output-Voltage 36 V
• Shunt-Current-Min 600 uA
