TLC072CDGN

TLC072CDGN Overview

Product belongs to the TLC072 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.000670 oz SMD/SMT Mounting-Style BiCMOS is the technology used. Number of channels: 2 Channel The amplifier is of Wideband Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 5.8 mA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 4.5 V SSOP-8 Input bias current of 50 pA The 1.9 mV. The Negative Rail + 0.5 V to Positive Rail - 0.8 V. 57 mA The CMRR-Common-Mode-Rejection-Ratio is 80 dB. The 12 nV/sqrt Hz of this product is 110 nV/sqrt Hz. The 0.0006 pA/sqrt Hz. Maximum dual supply voltage: +/- 8 V Minimum dual supply voltage of +/- 2.25 V

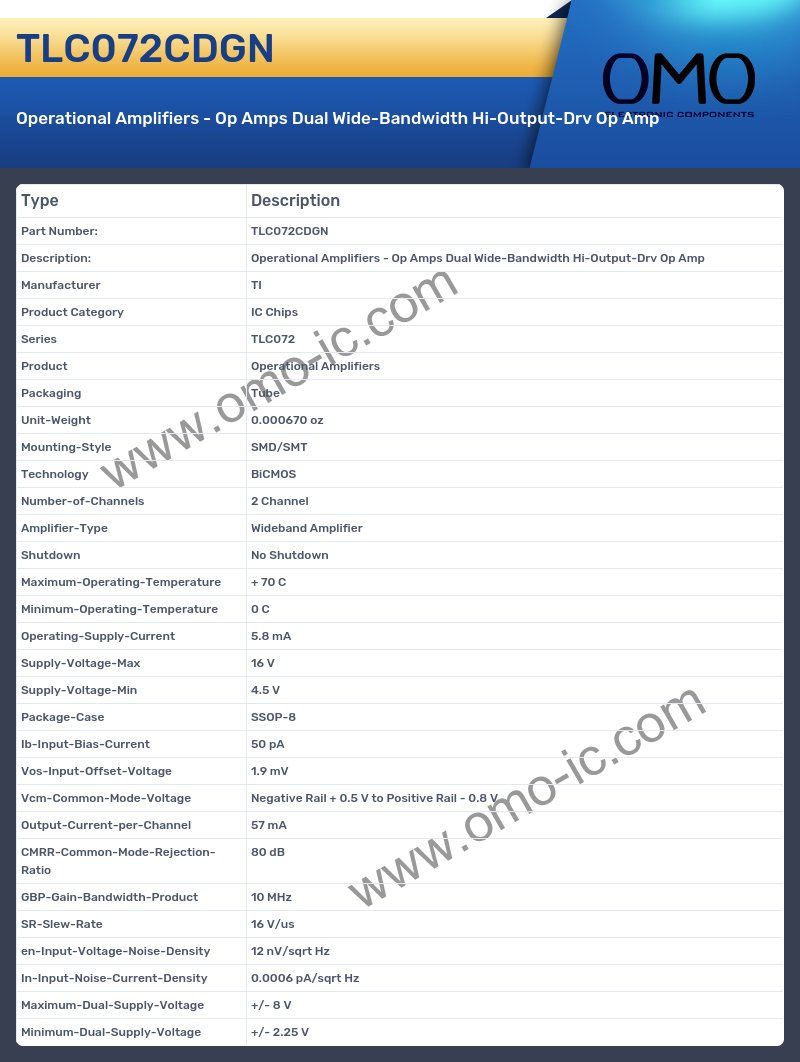

TLC072CDGN Image

TLC072CDGN Specifications

• Manufacturer TI
• Product Category IC Chips
• Series TLC072
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.000670 oz
• Mounting-Style SMD/SMT
• Technology BiCMOS
• Number-of-Channels 2 Channel
• Amplifier-Type Wideband Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 5.8 mA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4.5 V
• Package-Case SSOP-8
• Ib-Input-Bias-Current 50 pA
• Vos-Input-Offset-Voltage 1.9 mV
• Vcm-Common-Mode-Voltage Negative Rail + 0.5 V to Positive Rail - 0.8 V
• Output-Current-per-Channel 57 mA
• CMRR-Common-Mode-Rejection-Ratio 80 dB
• GBP-Gain-Bandwidth-Product 10 MHz
• SR-Slew-Rate 16 V/us
• en-Input-Voltage-Noise-Density 12 nV/sqrt Hz
• In-Input-Noise-Current-Density 0.0006 pA/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 8 V
• Minimum-Dual-Supply-Voltage +/- 2.25 V
