TLC372IP

TLC372IP Overview

Product belongs to the LinCMOS series. This product is categorized as Analog Comparators Type: Differential Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style Trade name: LinCMOS. PDIP-8 Operational temperature range: -40°C ~ 85°C Through Hole mounting type Output-Type: CMOS, MOS, Open-Drain, TTL Number of channels: 2 Channel Supplier device package: 8-PDIP Voltage supply range: 3 V ~ 16 V, ±1.5 V ~ 8 V 2 element 400μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 200 ns response time Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 150 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 3 V General Purpose comparator type Input bias current of 20 nA The 5 mV. The 0.3 nA. 6 mA

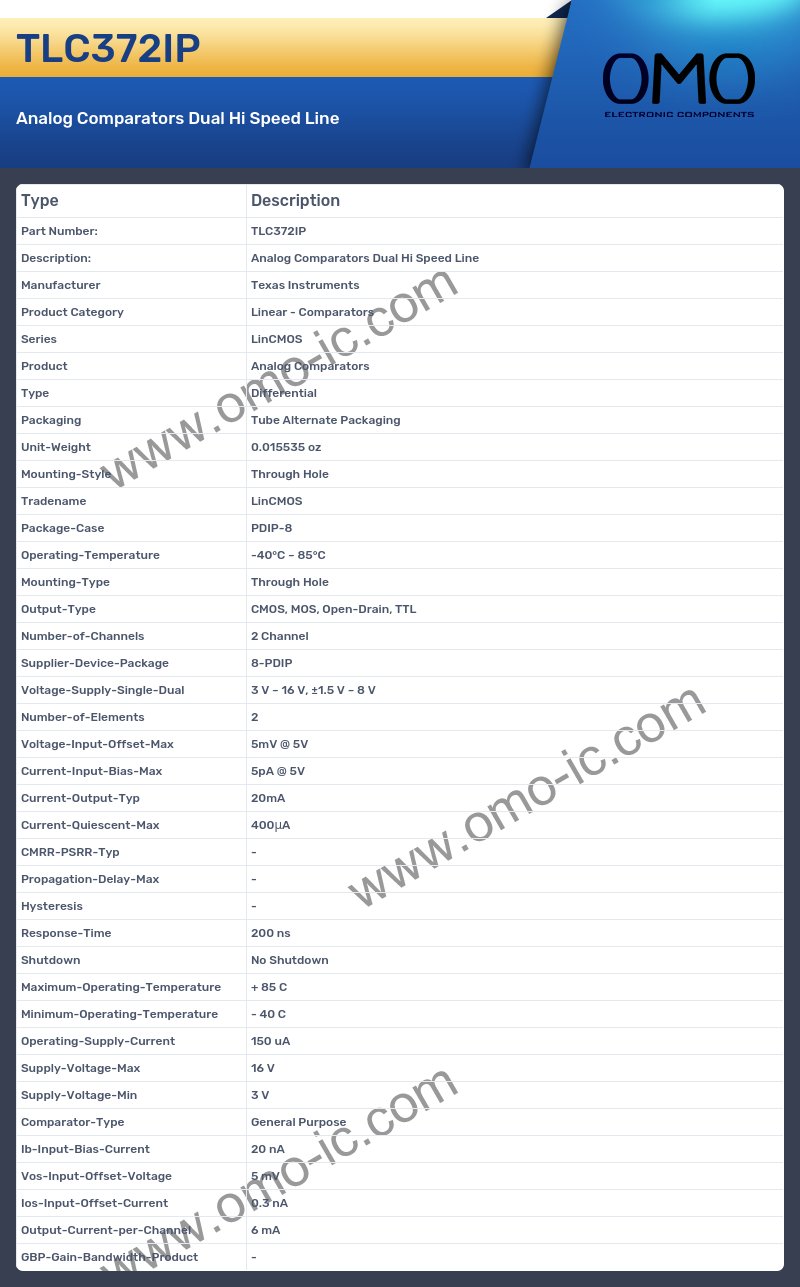

TLC372IP Image

TLC372IP Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LinCMOS
• Product Analog Comparators
• Type Differential
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Tradename LinCMOS
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Output-Type CMOS, MOS, Open-Drain, TTL
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-PDIP
• Voltage-Supply-Single-Dual 3 V ~ 16 V, ±1.5 V ~ 8 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 5mV @ 5V
• Current-Input-Bias-Max 5pA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 400μA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 200 ns
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 150 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 3 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 20 nA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 0.3 nA
• Output-Current-per-Channel 6 mA
• GBP-Gain-Bandwidth-Product -
