TLC372MP

TLC372MP Overview

Product belongs to the LinCMOS series. This product is categorized as Analog Comparators Type: Differential Tube is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style Trade name: LinCMOS. PDIP-8 Operational temperature range: -55°C ~ 125°C Through Hole mounting type Output-Type: CMOS, MOS, Open-Drain, TTL Number of channels: 2 Channel Supplier device package: 8-PDIP Voltage supply range: 4 V ~ 16 V, ±2 V ~ 8 V 2 element 400μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 200 ns response time Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 300 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 4 V General Purpose comparator type Input bias current of 20 nA The 5 mV. 6 mA

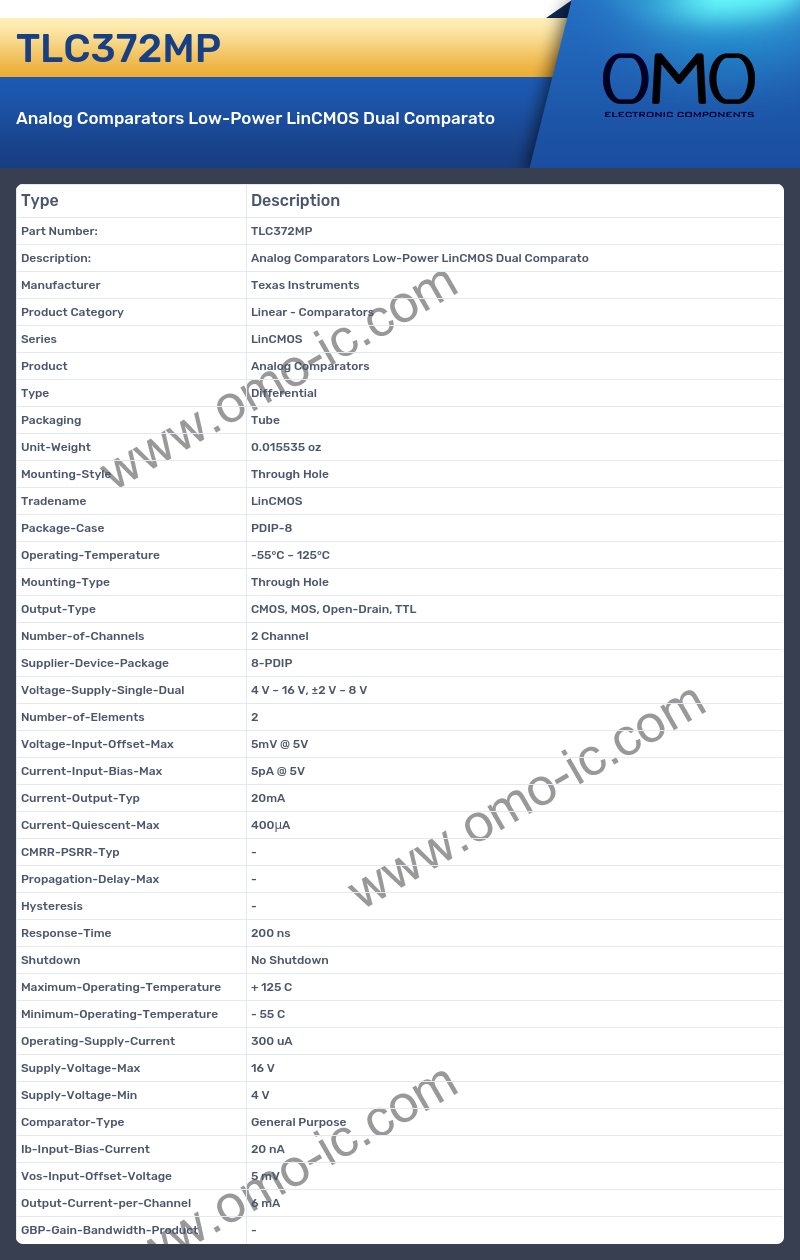

TLC372MP Image

TLC372MP Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LinCMOS
• Product Analog Comparators
• Type Differential
• Packaging Tube
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Tradename LinCMOS
• Package-Case PDIP-8
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type CMOS, MOS, Open-Drain, TTL
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-PDIP
• Voltage-Supply-Single-Dual 4 V ~ 16 V, ±2 V ~ 8 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 5mV @ 5V
• Current-Input-Bias-Max 5pA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 400μA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 200 ns
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 300 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 20 nA
• Vos-Input-Offset-Voltage 5 mV
• Output-Current-per-Channel 6 mA
• GBP-Gain-Bandwidth-Product -
