TLC374MD

TLC374MD Overview

Product belongs to the LinCMOS series. This product is categorized as Analog Comparators Type: Differential Tube Alternate Packaging is the packaging method for this product Weight of 0.004515 oz SMD/SMT Mounting-Style Trade name: LinCMOS. SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, MOS, Open-Drain, TTL Number of channels: 4 Channel Supplier device package: 14-SOIC Voltage supply range: 4 V ~ 16 V, ±2 V ~ 8 V 4 element 800μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 2.1 us response time Power-off control: No Shutdown Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 600 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 3 V General Purpose comparator type Input bias current of 5 pA The 5 mV. The 1 nA. The Negative Rail to Positive Rail -1 V. 16 mA

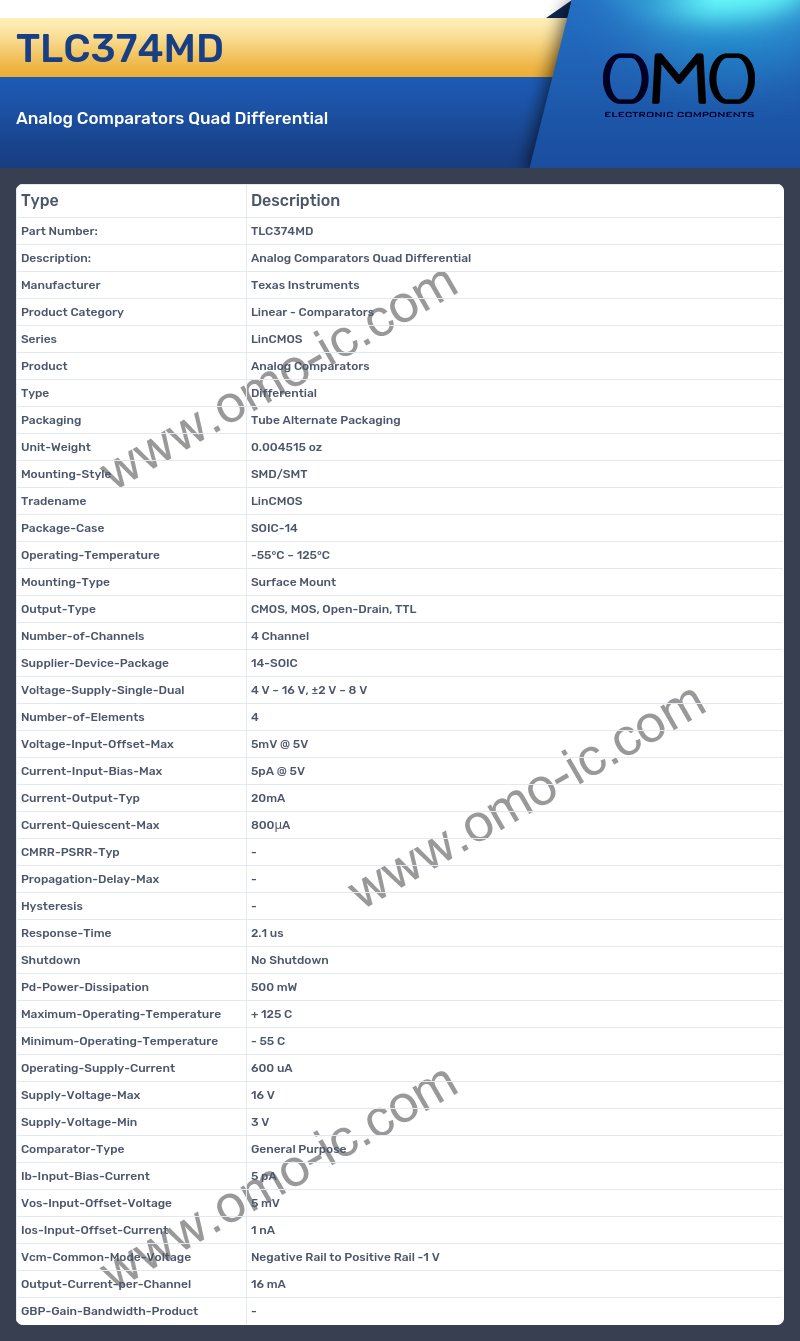

TLC374MD Image

TLC374MD Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LinCMOS
• Product Analog Comparators
• Type Differential
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004515 oz
• Mounting-Style SMD/SMT
• Tradename LinCMOS
• Package-Case SOIC-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, MOS, Open-Drain, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOIC
• Voltage-Supply-Single-Dual 4 V ~ 16 V, ±2 V ~ 8 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 5mV @ 5V
• Current-Input-Bias-Max 5pA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 800μA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 2.1 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 600 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 3 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 5 pA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 1 nA
• Vcm-Common-Mode-Voltage Negative Rail to Positive Rail -1 V
• Output-Current-per-Channel 16 mA
• GBP-Gain-Bandwidth-Product -
