TLC551CD

TLC551CD Overview

Product belongs to the TLC551 series. Type: 555 Type, Timer/Oscillator (Single) Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style Trade name: LinCMOS. SOIC-8 This product's 1.8MHz range is 0Hz to 2.2GHz. Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 1 V ~ 15 V Supplier device package: 8-SOIC This product has a 360μA of 200μA. Power-off control: 725 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 170 uA is 92 nA. Maximum supply voltage of 15 V Minimum supply voltage is 1 V High-Level-Output-Current of 100 mA - 10 mA low-level output current 1 Timer Internal Timers

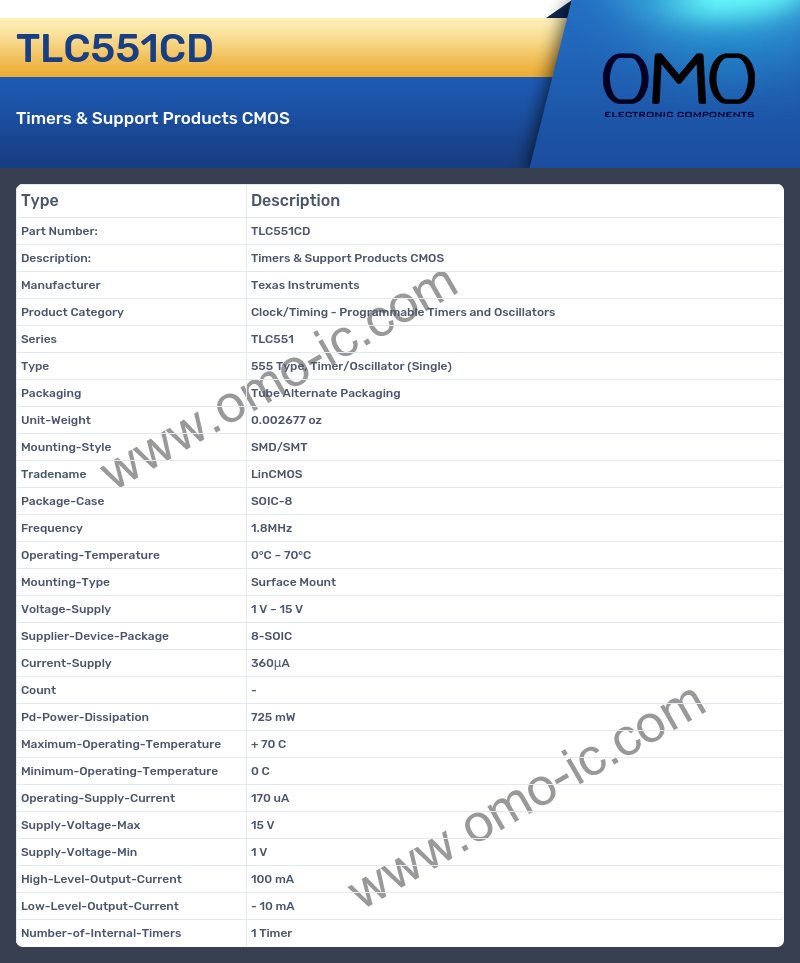

TLC551CD Image

TLC551CD Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series TLC551
• Type 555 Type, Timer/Oscillator (Single)
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Tradename LinCMOS
• Package-Case SOIC-8
• Frequency 1.8MHz
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Supply 1 V ~ 15 V
• Supplier-Device-Package 8-SOIC
• Current-Supply 360μA
• Count -
• Pd-Power-Dissipation 725 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 170 uA
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 1 V
• High-Level-Output-Current 100 mA
• Low-Level-Output-Current - 10 mA
• Number-of-Internal-Timers 1 Timer
