TLC7528CDWR

TLC7528CDWR Overview

Product belongs to the TLC7528 series. This product is categorized as Digital to Analog Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.018953 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: 0°C ~ 70°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 20-SOIC Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 5 V ~ 15 V. The Voltage Supply Digital for this product is 5 V ~ 15 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 2 The 100μs is an impressive 15 us. No Differential-Output Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Maximum supply voltage of 5.25 V 15.5 V Minimum supply voltage is 4.75 V 14.5 V Number-of-Converters: 2 Converter 10 MS/s Sampling Rate

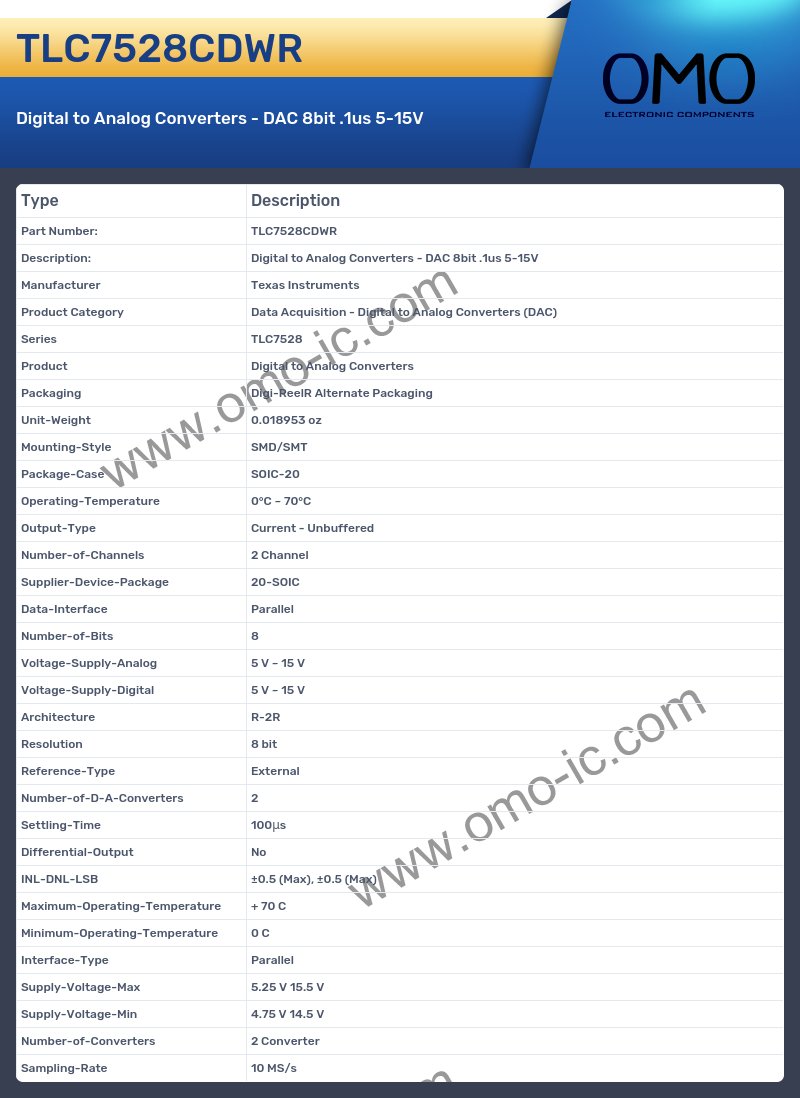

TLC7528CDWR Image

TLC7528CDWR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series TLC7528
• Product Digital to Analog Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.018953 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature 0°C ~ 70°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 20-SOIC
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 5 V ~ 15 V
• Voltage-Supply-Digital 5 V ~ 15 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 100μs
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±0.5 (Max)
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• Supply-Voltage-Max 5.25 V 15.5 V
• Supply-Voltage-Min 4.75 V 14.5 V
• Number-of-Converters 2 Converter
• Sampling-Rate 10 MS/s
