TLC7701MPWREP

TLC7701MPWREP Overview

Product belongs to the TLC7701-EP series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001376 oz SMD/SMT Mounting-Style TSSOP-8 Operational temperature range: -55°C ~ 125°C (TA) Surface Mount mounting type Supplier device package: 8-TSSOP The Push-Pull, Totem Pole. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 1.1 ms Minimum. This product's 1.1V. Power-off control: 525 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 16 uA is 92 nA. This product is also known as V62/04604-04XE and can be referred to by either part number. Maximum supply voltage of 6 V Minimum supply voltage is 2 V This product includes No Watchdog This product's 5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. The 1.16 V is 2.35 V. 1.04 V is set to 2.29 V.

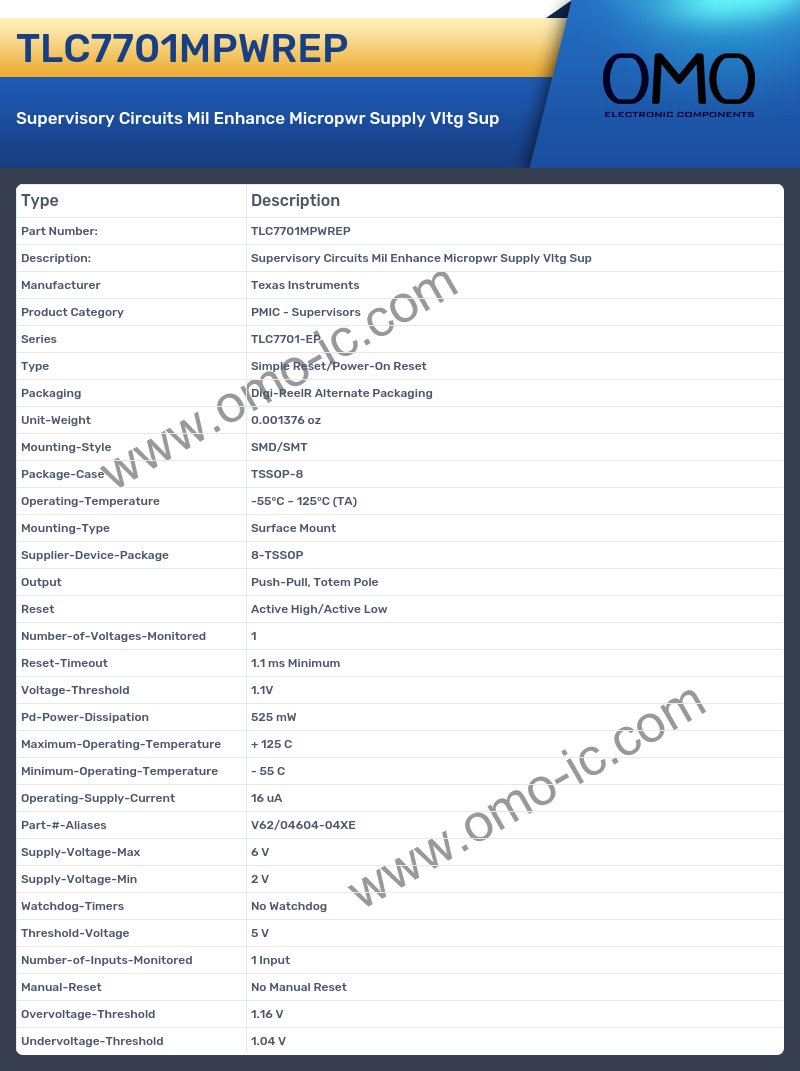

TLC7701MPWREP Image

TLC7701MPWREP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TLC7701-EP
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001376 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-8
• Operating-Temperature -55°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-TSSOP
• Output Push-Pull, Totem Pole
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 1.1 ms Minimum
• Voltage-Threshold 1.1V
• Pd-Power-Dissipation 525 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 16 uA
• Part-#-Aliases V62/04604-04XE
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Overvoltage-Threshold 1.16 V
• Undervoltage-Threshold 1.04 V
