TLV431IDBVT

TLV431IDBVT Overview

Product belongs to the TLV431 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-5 Tolerance of ±1.5% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 1.24V . 129 PPM / C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: Adjustable Initial accuracy: 1.5 % Maximum input voltage of 7 V for Series VREF. Maximum shunt current of 15 mA Maximum output voltage is 6 V . This product has a minimum 80 uA of 50 uA.

TLV431IDBVT Image

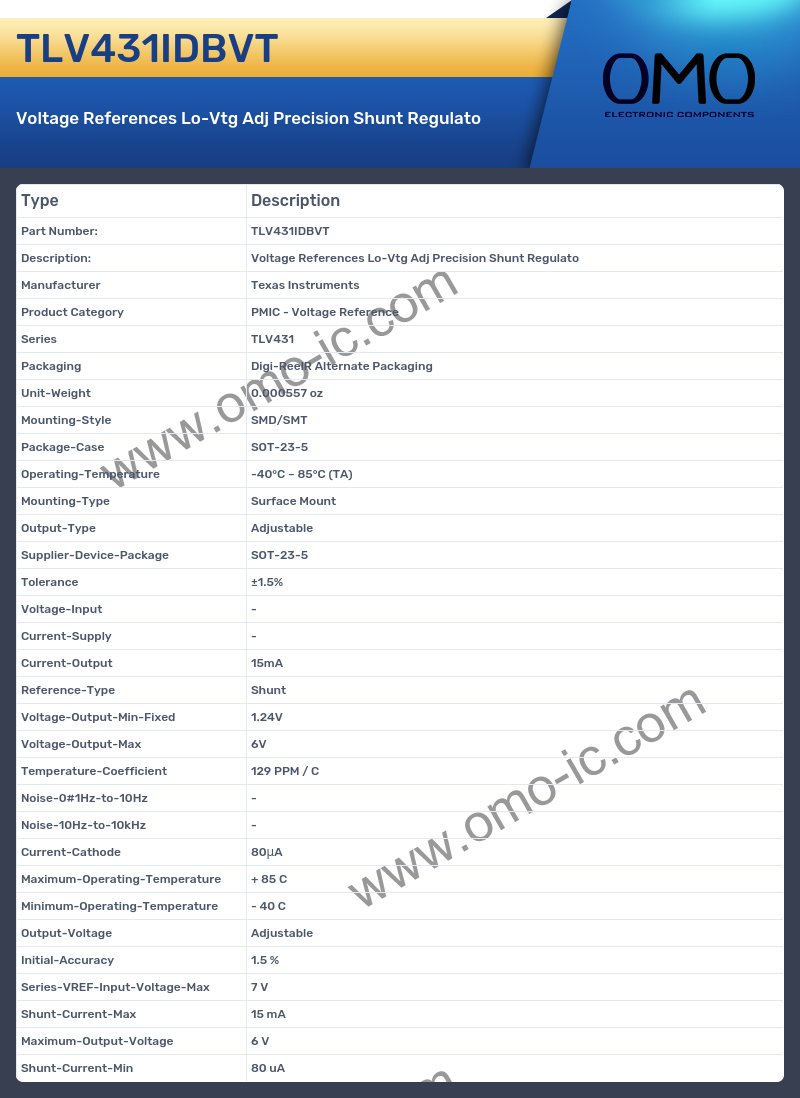

TLV431IDBVT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series TLV431
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package SOT-23-5
• Tolerance ±1.5%
• Voltage-Input -
• Current-Supply -
• Current-Output 15mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 1.24V
• Voltage-Output-Max 6V
• Temperature-Coefficient 129 PPM / C
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 80μA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adjustable
• Initial-Accuracy 1.5 %
• Series-VREF-Input-Voltage-Max 7 V
• Shunt-Current-Max 15 mA
• Maximum-Output-Voltage 6 V
• Shunt-Current-Min 80 uA
