TLV809K33DBVR

TLV809K33DBVR Overview

Product belongs to the TLV809K33 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style SOT-23-3 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active Low Supplier device package: SOT-23-3 The Push-Pull, Totem Pole. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 120 ms Minimum. This product's 2.93V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 9 uA is 92 nA. This product does not have No Backup capability. The TLV809KEVM-019. Maximum supply voltage of 6 V Minimum supply voltage is 2 V This product includes No Watchdog This product's 3.3 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. The product's 200 ms is 200 ms. 2.93 V is set to 2.29 V.

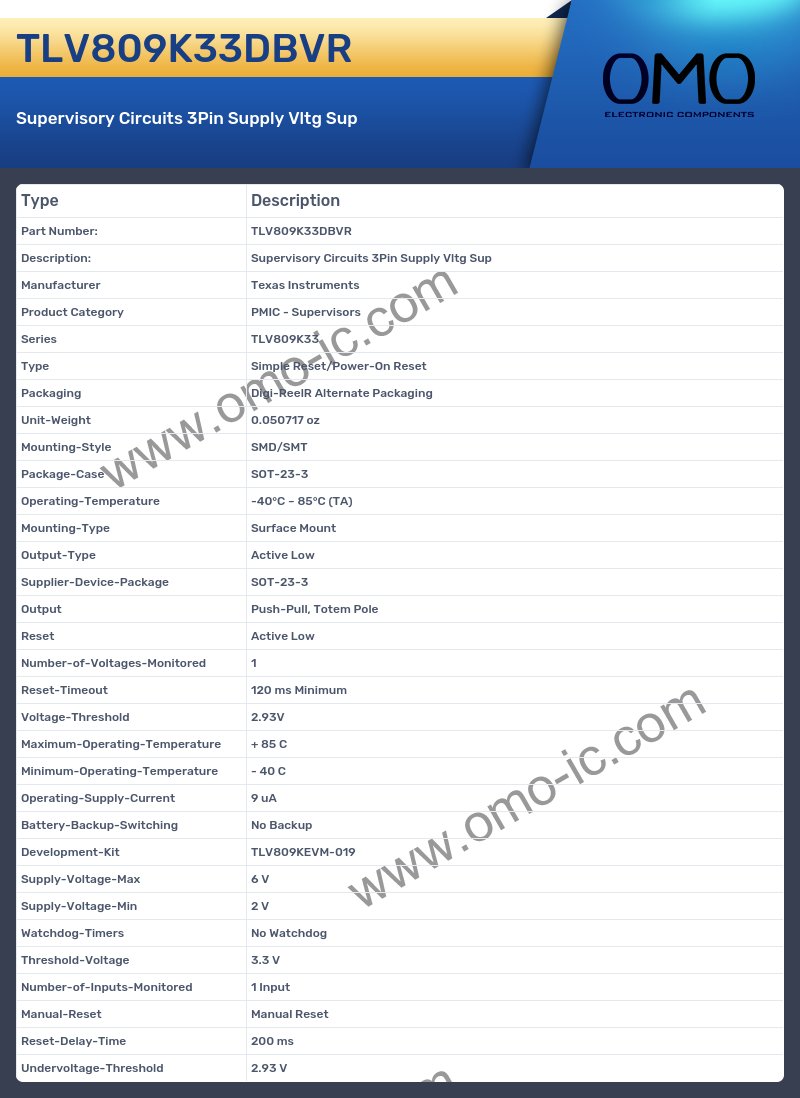

TLV809K33DBVR Image

TLV809K33DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TLV809K33
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-3
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low
• Supplier-Device-Package SOT-23-3
• Output Push-Pull, Totem Pole
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 120 ms Minimum
• Voltage-Threshold 2.93V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 9 uA
• Battery-Backup-Switching No Backup
• Development-Kit TLV809KEVM-019
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 3.3 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Reset-Delay-Time 200 ms
• Undervoltage-Threshold 2.93 V
