TN22-1500B-TR

TN22-1500B-TR Overview

Product belongs to the - series. Cut Tape (CT) is the packaging method for this product TO-252-3, DPak (2 Leads + Tab), SC-63 Operational temperature range: -40°C ~ 110°C Surface Mount mounting type Supplier device package: D-Pak 175mA of Current-Hold-Ih-Max The Voltage-Off-State is 400V. Voltage-Gate-Trigger-Vgt-Max 3V 1.5mA of Current-Gate-Trigger-Igt-Max Maximum 3.1V On-State Voltage Its 1.8A Current-On-State-It-AV-Max 2A is the maximum Current-On-State-It-RMS. 100μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 20A, 22A for 50-60Hz Itsm. SCR-Type: Standard Recovery;

TN22-1500B-TR Image

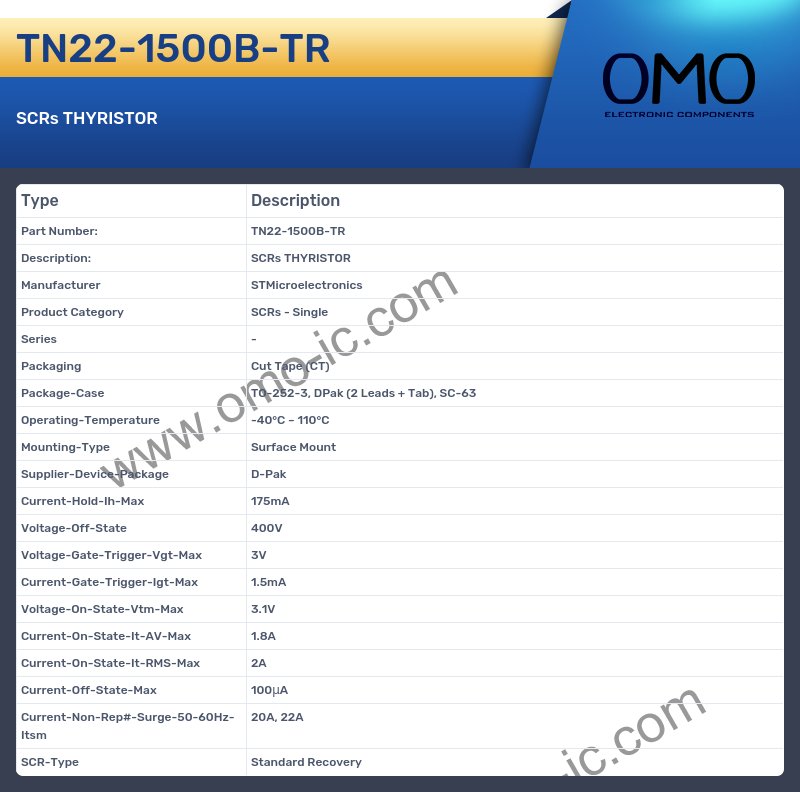

TN22-1500B-TR Specifications

• Manufacturer STMicroelectronics
• Product Category SCRs - Single
• Series -
• Packaging Cut Tape (CT)
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Operating-Temperature -40°C ~ 110°C
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Current-Hold-Ih-Max 175mA
• Voltage-Off-State 400V
• Voltage-Gate-Trigger-Vgt-Max 3V
• Current-Gate-Trigger-Igt-Max 1.5mA
• Voltage-On-State-Vtm-Max 3.1V
• Current-On-State-It-AV-Max 1.8A
• Current-On-State-It-RMS-Max 2A
• Current-Off-State-Max 100μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 20A, 22A
• SCR-Type Standard Recovery
