TPD2E009DRTR

TPD2E009DRTR Overview

Product belongs to the TPD2E009 series. Type: Steering (Rail to Rail) Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. SOT-3 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile Ethernet, HDMI applications for maximum usability Number of channels: 2 Channel Supplier device package: SOT-3 2 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5.5V (Max). The Voltage-Breakdown-Min is 7V. Yes Power-Line-Protection - Capacitance-Frequency Power-off control: 45 W Maximum operating temperature of + 150 C Breakdown-Voltage: 7 V Clamping-Voltage: 8 V The Cd-Diode-Capacitance is 0.7 pF 5.5 V working voltage Polarity: Unidirectional 1 A of IPP, Peak Pulse, and Current 8 kV of Vesd-Voltage-ESD-Contact 8 kV Vesd-Voltage-ESD-Air-Gap

TPD2E009DRTR Image

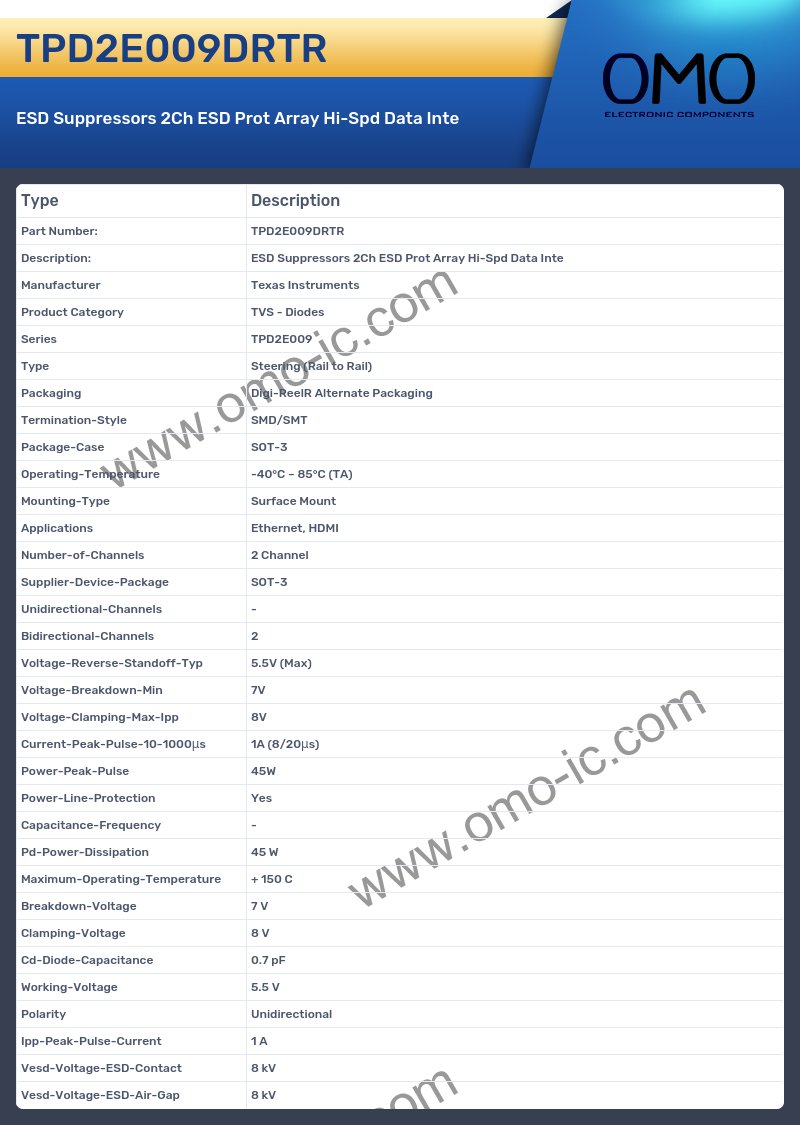

TPD2E009DRTR Specifications

• Manufacturer Texas Instruments
• Product Category TVS - Diodes
• Series TPD2E009
• Type Steering (Rail to Rail)
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case SOT-3
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Ethernet, HDMI
• Number-of-Channels 2 Channel
• Supplier-Device-Package SOT-3
• Unidirectional-Channels -
• Bidirectional-Channels 2
• Voltage-Reverse-Standoff-Typ 5.5V (Max)
• Voltage-Breakdown-Min 7V
• Voltage-Clamping-Max-Ipp 8V
• Current-Peak-Pulse-10-1000μs 1A (8/20μs)
• Power-Peak-Pulse 45W
• Power-Line-Protection Yes
• Capacitance-Frequency -
• Pd-Power-Dissipation 45 W
• Maximum-Operating-Temperature + 150 C
• Breakdown-Voltage 7 V
• Clamping-Voltage 8 V
• Cd-Diode-Capacitance 0.7 pF
• Working-Voltage 5.5 V
• Polarity Unidirectional
• Ipp-Peak-Pulse-Current 1 A
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 8 kV
