TPD2E1B06DRLR

TPD2E1B06DRLR Overview

Product belongs to the TPD2E1B06 series. Type: Steering (Rail to Rail) Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. SOT-563, SOT-666 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 2 Channel Supplier device package: 6-SOT 2 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5.5V (Max). The Voltage-Breakdown-Min is 7V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 35 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 7 V Clamping-Voltage: 15 V The Cd-Diode-Capacitance is 1.05 pF 5.5 V working voltage Polarity: Bidirectional 5 A of IPP, Peak Pulse, and Current 10 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap

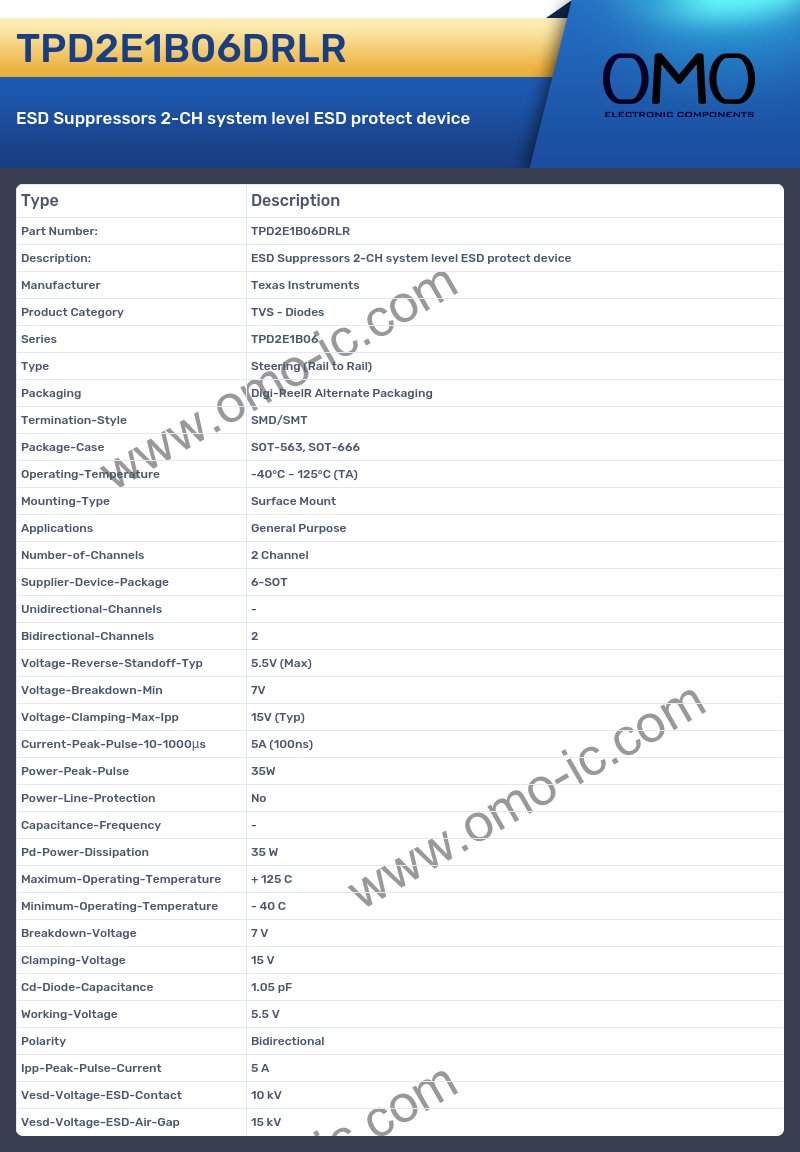

TPD2E1B06DRLR Image

TPD2E1B06DRLR Specifications

• Manufacturer Texas Instruments
• Product Category TVS - Diodes
• Series TPD2E1B06
• Type Steering (Rail to Rail)
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case SOT-563, SOT-666
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 2 Channel
• Supplier-Device-Package 6-SOT
• Unidirectional-Channels -
• Bidirectional-Channels 2
• Voltage-Reverse-Standoff-Typ 5.5V (Max)
• Voltage-Breakdown-Min 7V
• Voltage-Clamping-Max-Ipp 15V (Typ)
• Current-Peak-Pulse-10-1000μs 5A (100ns)
• Power-Peak-Pulse 35W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 35 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 7 V
• Clamping-Voltage 15 V
• Cd-Diode-Capacitance 1.05 pF
• Working-Voltage 5.5 V
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 5 A
• Vesd-Voltage-ESD-Contact 10 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
