TPD4E02B04DQAR

TPD4E02B04DQAR Overview

Product belongs to the TPD4E02B04 series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 10-UFDFN Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Versatile HDMI applications for maximum usability Number of channels: 4 Channel Supplier device package: 10-USON (2.5x1) 4 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3.6V (Max). The Voltage-Breakdown-Min is 5.5V. No Power-Line-Protection 0.27pF @ 1MHz Capacitance-Frequency Power-off control: 17 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 5.5 V Clamping-Voltage: 8.8 V The Cd-Diode-Capacitance is 0.27 pF Polarity: Bidirectional 5 A of IPP, Peak Pulse, and Current 12 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 3.6 V supply voltage for reliable performance.

TPD4E02B04DQAR Image

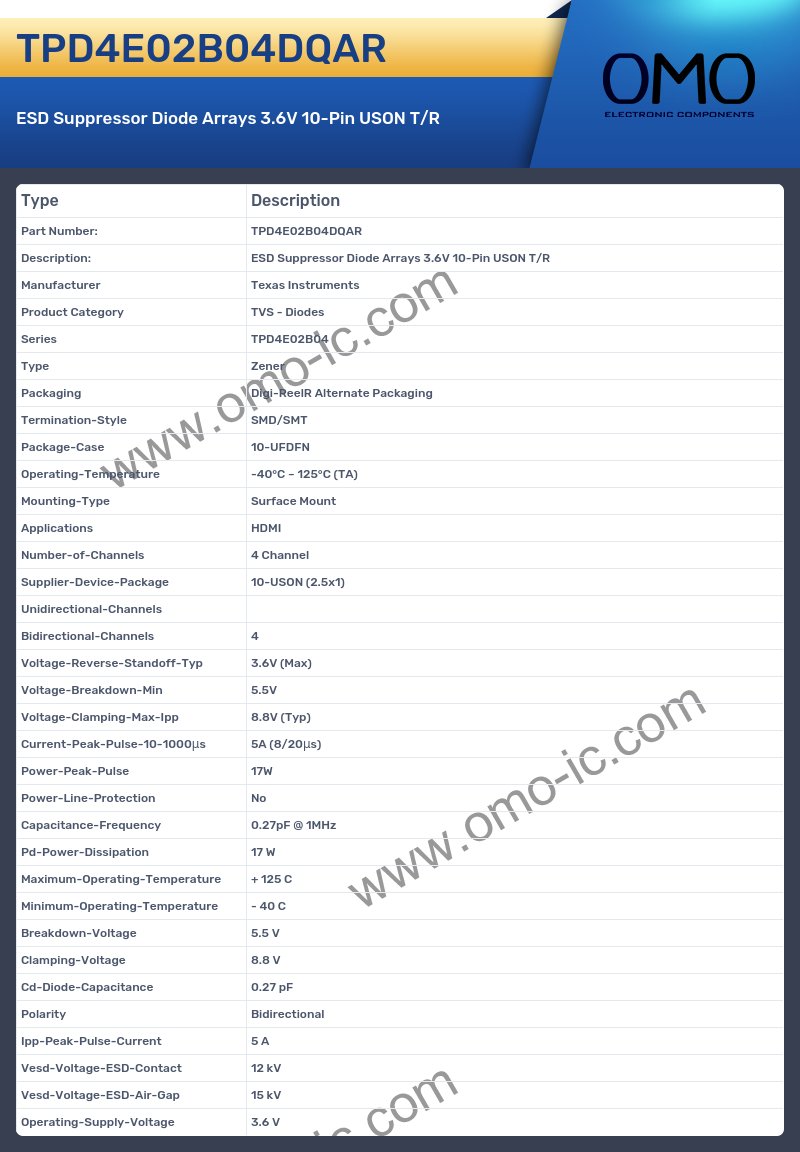

TPD4E02B04DQAR Specifications

• Manufacturer Texas Instruments
• Product Category TVS - Diodes
• Series TPD4E02B04
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case 10-UFDFN
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Applications HDMI
• Number-of-Channels 4 Channel
• Supplier-Device-Package 10-USON (2.5x1)
• Unidirectional-Channels
• Bidirectional-Channels 4
• Voltage-Reverse-Standoff-Typ 3.6V (Max)
• Voltage-Breakdown-Min 5.5V
• Voltage-Clamping-Max-Ipp 8.8V (Typ)
• Current-Peak-Pulse-10-1000μs 5A (8/20μs)
• Power-Peak-Pulse 17W
• Power-Line-Protection No
• Capacitance-Frequency 0.27pF @ 1MHz
• Pd-Power-Dissipation 17 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 5.5 V
• Clamping-Voltage 8.8 V
• Cd-Diode-Capacitance 0.27 pF
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 5 A
• Vesd-Voltage-ESD-Contact 12 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
• Operating-Supply-Voltage 3.6 V
