TPDV825RG

TPDV825RG Overview

Product belongs to the TPDVxx25 series. Bulk is the packaging method for this product Through Hole Mounting-Style TOP-3 Through Hole mounting type Supplier device package: TOP3 Configuration Single 50mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1.5V 150mA of Current-Gate-Trigger-Igt-Max 25A is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 230A, 250A for 50-60Hz Itsm. Alternistor - Snubberless Triac-Type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 800 V Rated Repetitive Off-State Voltage VDRM; 390 A Non-Repetitive On-State Current The 0.02 mA Off-State Leakage Current in VDRM and IDRM. The 1.8 V On-State-Voltage

TPDV825RG Image

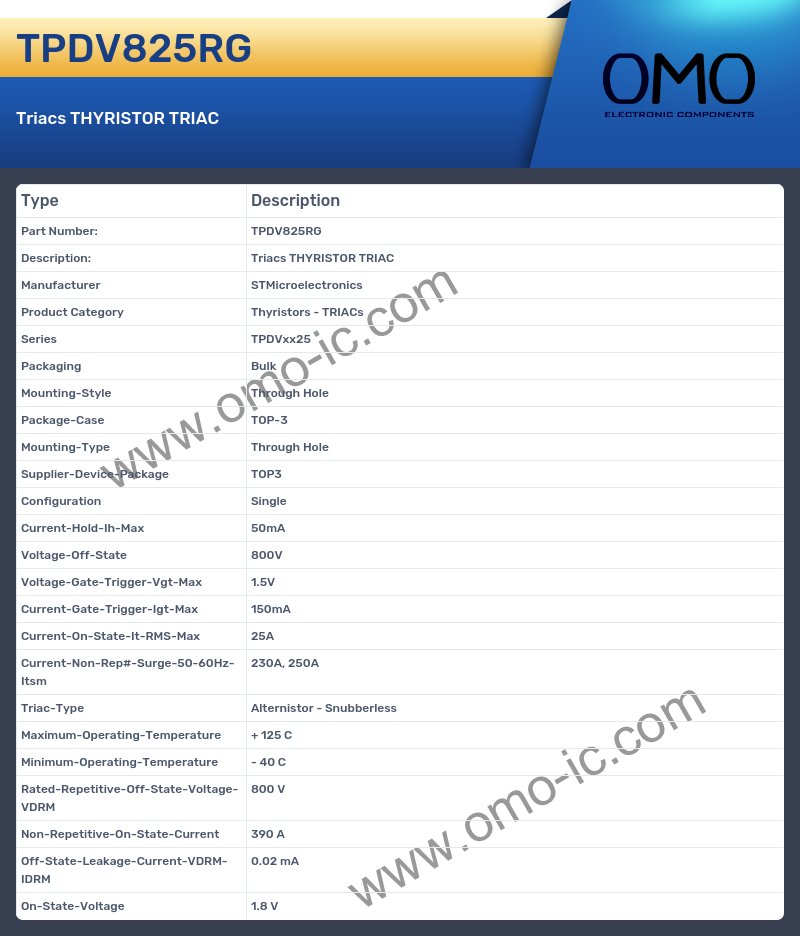

TPDV825RG Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - TRIACs
• Series TPDVxx25
• Packaging Bulk
• Mounting-Style Through Hole
• Package-Case TOP-3
• Mounting-Type Through Hole
• Supplier-Device-Package TOP3
• Configuration Single
• Current-Hold-Ih-Max 50mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 1.5V
• Current-Gate-Trigger-Igt-Max 150mA
• Current-On-State-It-RMS-Max 25A
• Current-Non-Rep#-Surge-50-60Hz-Itsm 230A, 250A
• Triac-Type Alternistor - Snubberless
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 800 V
• Non-Repetitive-On-State-Current 390 A
• Off-State-Leakage-Current-VDRM-IDRM 0.02 mA
• On-State-Voltage 1.8 V
