TPIC9201PWP

TPIC9201PWP Overview

Product belongs to the TPIC9201 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002885 oz SMD/SMT Mounting-Style HTSSOP-20 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TA) Output-Type: N-Channel Interface: Serial Supplier device package: 20-HTSSOP The Ratio-Input:Output for this product is 1899/12/30 1:08:00. Number-of-Outputs: 8 Supply Voltage: 0 V ~ 5.25 V The Low Side. The -. Voltage-Load range is 7 V ~ 18 V. Our product delivers a 150mA of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 3787 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Number-of-Drivers: 8 Driver

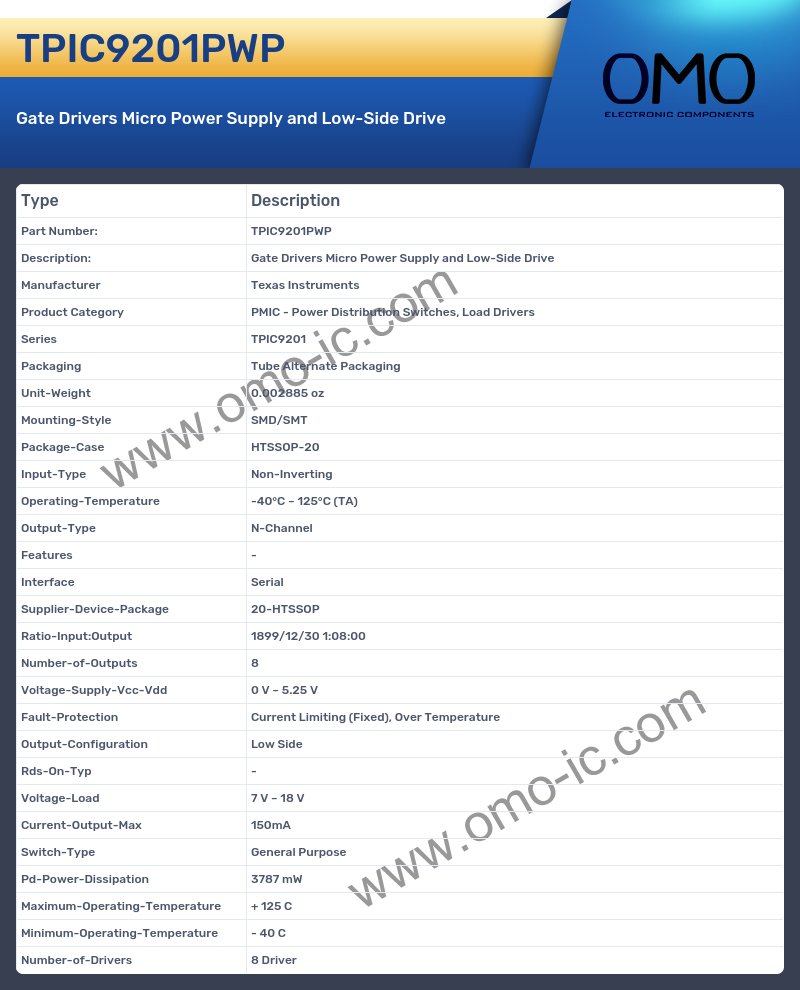

TPIC9201PWP Image

TPIC9201PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPIC9201
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002885 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-20
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TA)
• Output-Type N-Channel
• Features -
• Interface Serial
• Supplier-Device-Package 20-HTSSOP
• Ratio-Input:Output 1899/12/30 1:08:00
• Number-of-Outputs 8
• Voltage-Supply-Vcc-Vdd 0 V ~ 5.25 V
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration Low Side
• Rds-On-Typ -
• Voltage-Load 7 V ~ 18 V
• Current-Output-Max 150mA
• Switch-Type General Purpose
• Pd-Power-Dissipation 3787 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Number-of-Drivers 8 Driver
