TPS2552DBVR

TPS2552DBVR Overview

Product belongs to the TPS2552 series. This product is categorized as USB Current Limited Power Switches Type: High Side Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: SOT-23-6 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 85 mOhm. Voltage-Load range is 2.5 V ~ 6.5 V. Our product delivers a 1.5A of 50mA for efficient power management. The Switch-Type is USB Switch. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.5 V to 6.5 V supply voltage for reliable performance. Output current: 1.5 A This product is also known as HPA00714DBVR and can be referred to by either part number. Maximum supply voltage of 6.5 V Minimum supply voltage is 2.5 V Max on-resistance of 85 mOhms This product's 1.2 A feature is adjustable.

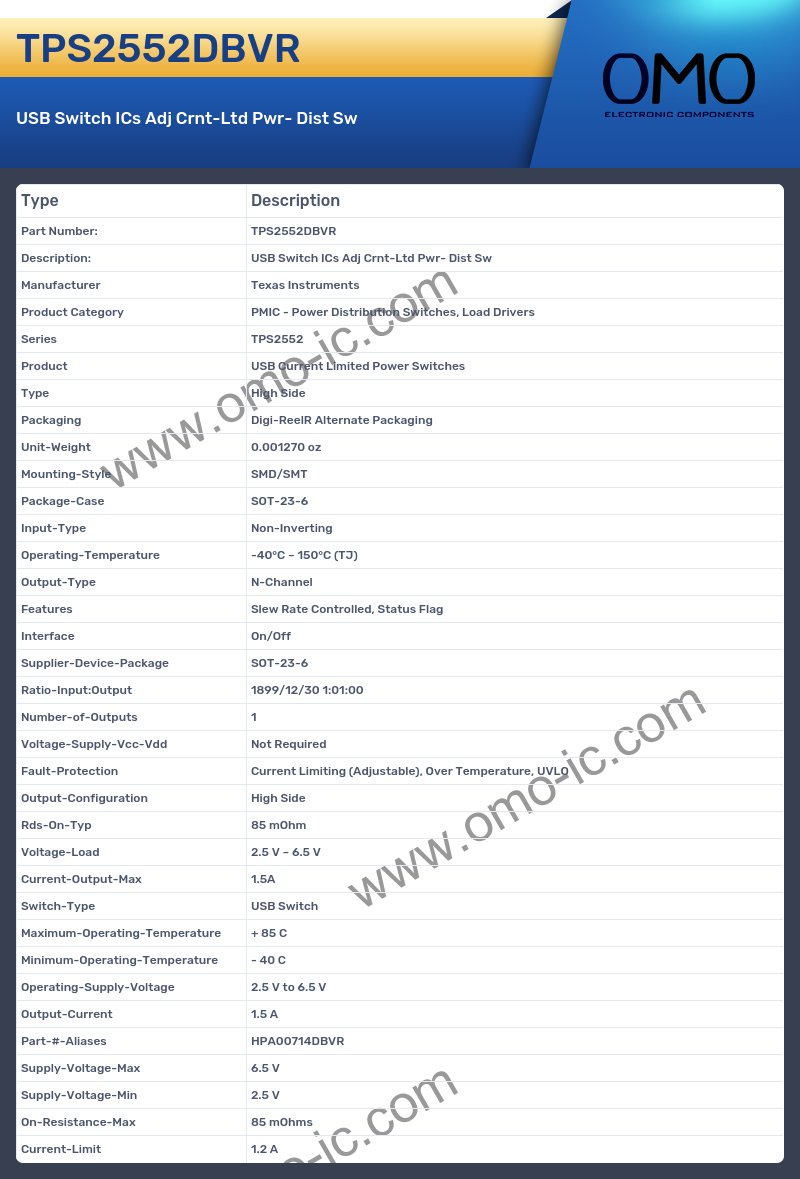

TPS2552DBVR Image

TPS2552DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2552
• Product USB Current Limited Power Switches
• Type High Side
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Slew Rate Controlled, Status Flag
• Interface On/Off
• Supplier-Device-Package SOT-23-6
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Adjustable), Over Temperature, UVLO
• Output-Configuration High Side
• Rds-On-Typ 85 mOhm
• Voltage-Load 2.5 V ~ 6.5 V
• Current-Output-Max 1.5A
• Switch-Type USB Switch
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V to 6.5 V
• Output-Current 1.5 A
• Part-#-Aliases HPA00714DBVR
• Supply-Voltage-Max 6.5 V
• Supply-Voltage-Min 2.5 V
• On-Resistance-Max 85 mOhms
• Current-Limit 1.2 A
