TPS3126E12DBVR

TPS3126E12DBVR Overview

Product belongs to the TPS3126E12 series. Type: Simple Reset/Power-On Reset Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 13 mg SMD/SMT Mounting-Style SC-74A, SOT-753 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Open Collector / Drain Supplier device package: SOT-23-5 The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 100 ms Minimum. This product's 1.14V. Power-off control: 437 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 14 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 3.3 V Minimum supply voltage is 0.75 V This product includes No Watchdog This product's 0.85 V to 3.3 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 180 ms is 200 ms. The 1.18 V is 2.35 V. 1.14 V is set to 2.29 V.

TPS3126E12DBVR Image

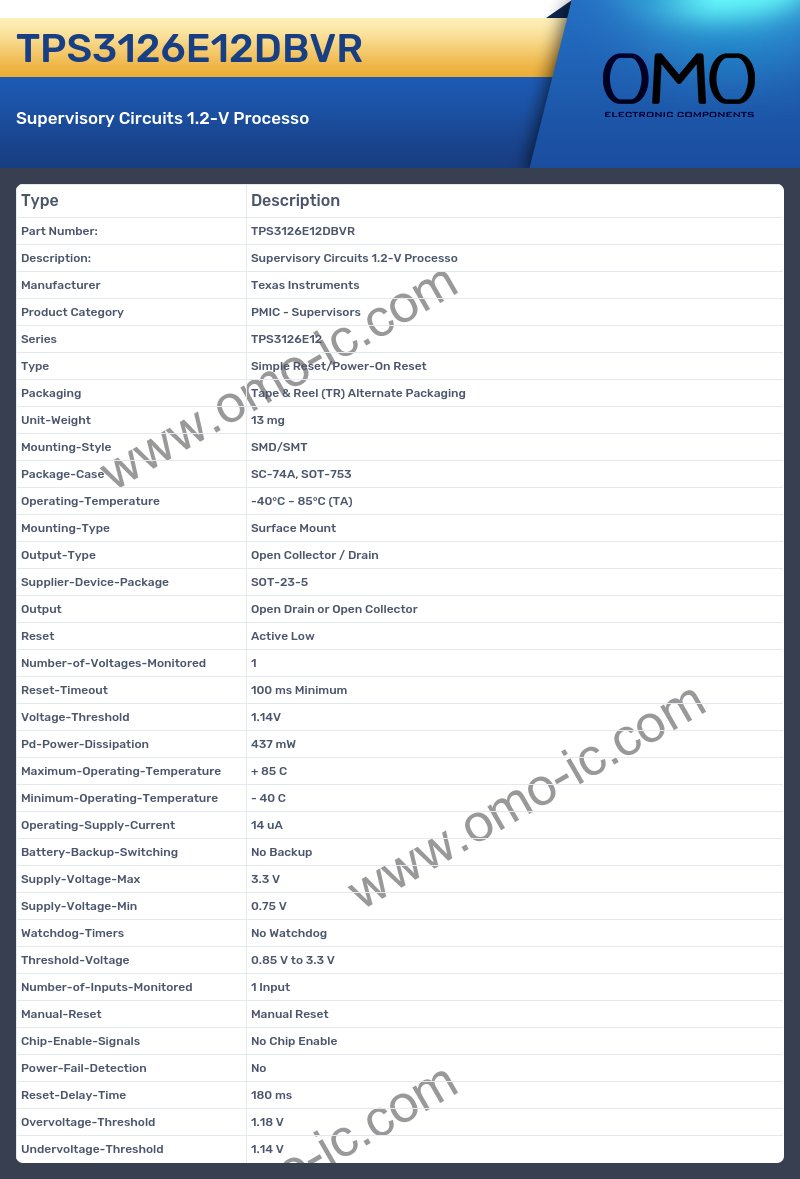

TPS3126E12DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3126E12
• Type Simple Reset/Power-On Reset
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 13 mg
• Mounting-Style SMD/SMT
• Package-Case SC-74A, SOT-753
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Collector / Drain
• Supplier-Device-Package SOT-23-5
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 100 ms Minimum
• Voltage-Threshold 1.14V
• Pd-Power-Dissipation 437 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 14 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 3.3 V
• Supply-Voltage-Min 0.75 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 0.85 V to 3.3 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 180 ms
• Overvoltage-Threshold 1.18 V
• Undervoltage-Threshold 1.14 V
