TPS3700DSET

TPS3700DSET Overview

Product belongs to the TPS3700 series. This product is categorized as Analog Comparators Type: Window Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style WSON-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Number of channels: 1 Channel Supplier device package: 6-WSON (1.5x1.5) Voltage supply range: 1.8 V ~ 18 V 1 element 13μA maximum quiescent current. Maximum propagation delay: 29μs Hysteresis value of 5.5mV Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 5.5 uA is 92 nA. The TPS3700EVM-114. Maximum supply voltage of 18 V Minimum supply voltage is 1.8 V Window comparator type Input bias current of - The -. 29 us is 23 microseconds. 40 mA

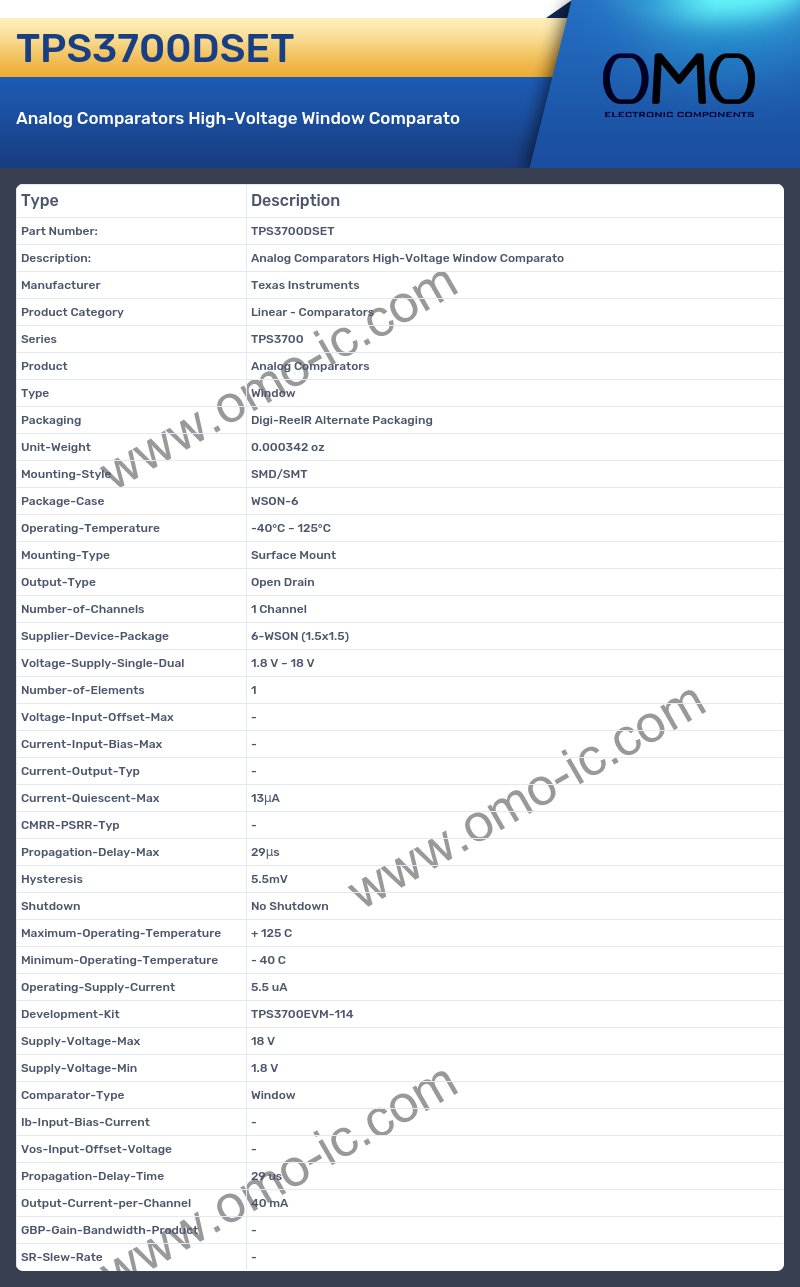

TPS3700DSET Image

TPS3700DSET Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series TPS3700
• Product Analog Comparators
• Type Window
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Number-of-Channels 1 Channel
• Supplier-Device-Package 6-WSON (1.5x1.5)
• Voltage-Supply-Single-Dual 1.8 V ~ 18 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max -
• Current-Input-Bias-Max -
• Current-Output-Typ -
• Current-Quiescent-Max 13μA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max 29μs
• Hysteresis 5.5mV
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5.5 uA
• Development-Kit TPS3700EVM-114
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 1.8 V
• Comparator-Type Window
• Ib-Input-Bias-Current -
• Vos-Input-Offset-Voltage -
• Propagation-Delay-Time 29 us
• Output-Current-per-Channel 40 mA
• GBP-Gain-Bandwidth-Product -
• SR-Slew-Rate -
