TPS54972PWP

TPS54972PWP Overview

Product belongs to the TPS54972 series. Type: Step-Down Converter Tube is the packaging method for this product Weight of 0.004180 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications Number-of-Outputs: 1 Output Topology: Buck feedback Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 1.25 V Input Voltage Range: 3 V to 4 V Maximum Input Voltage: 4 V Output current: 9 A Switching frequency is 700 kHz The product's 3 V is 5.1 V. Load regulation is 0.03 % / A. The TPS54972EVM-222. Minimum supply voltage is 3 V HTSSOP-28

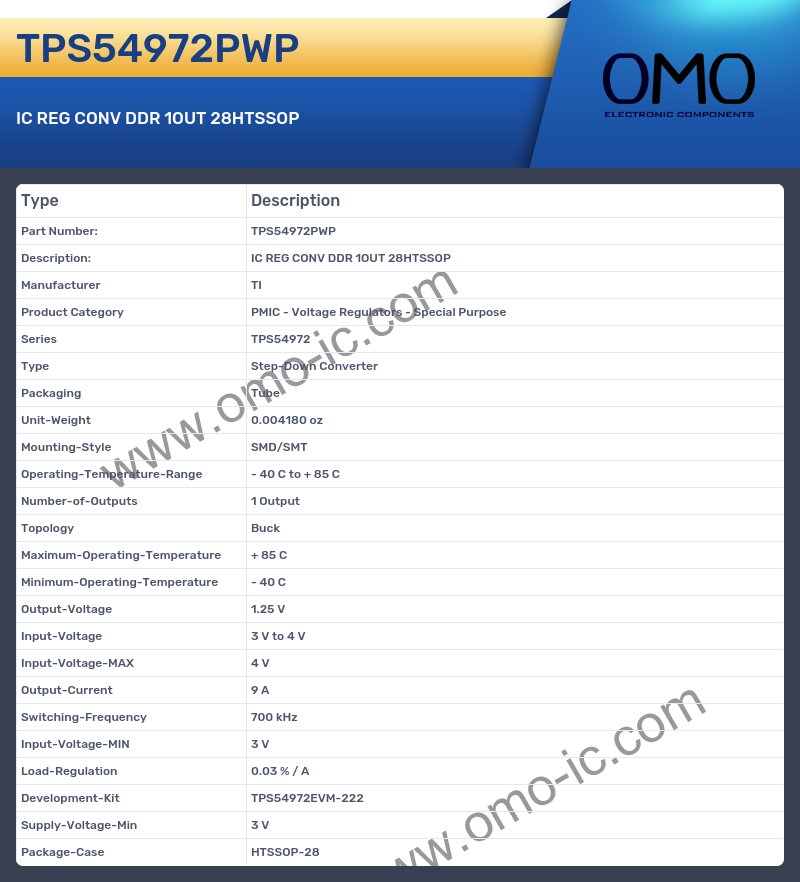

TPS54972PWP Image

TPS54972PWP Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - Special Purpose
• Series TPS54972
• Type Step-Down Converter
• Packaging Tube
• Unit-Weight 0.004180 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Number-of-Outputs 1 Output
• Topology Buck
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.25 V
• Input-Voltage 3 V to 4 V
• Input-Voltage-MAX 4 V
• Output-Current 9 A
• Switching-Frequency 700 kHz
• Input-Voltage-MIN 3 V
• Load-Regulation 0.03 % / A
• Development-Kit TPS54972EVM-222
• Supply-Voltage-Min 3 V
• Package-Case HTSSOP-28
