TPS563201DDCT

TPS563201DDCT Overview

Product belongs to the D-CAP2, Eco-Mode series. Type: Voltage Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SOT-6 Operational temperature range: -45°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 6-SOT Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 580kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.768V . The value of Yes is included as a product attribute. The minimum input voltage is 4.5V. The 17V. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 760 mV to 7 V 380 uA is 92 nA. Input Voltage Range: 4.5 V to 17 V Maximum Input Voltage: 17 V Output current: 3 A Switching frequency is 580 kHz The product's 4.5 V is 5.1 V. Minimum supply voltage is 1.5 V

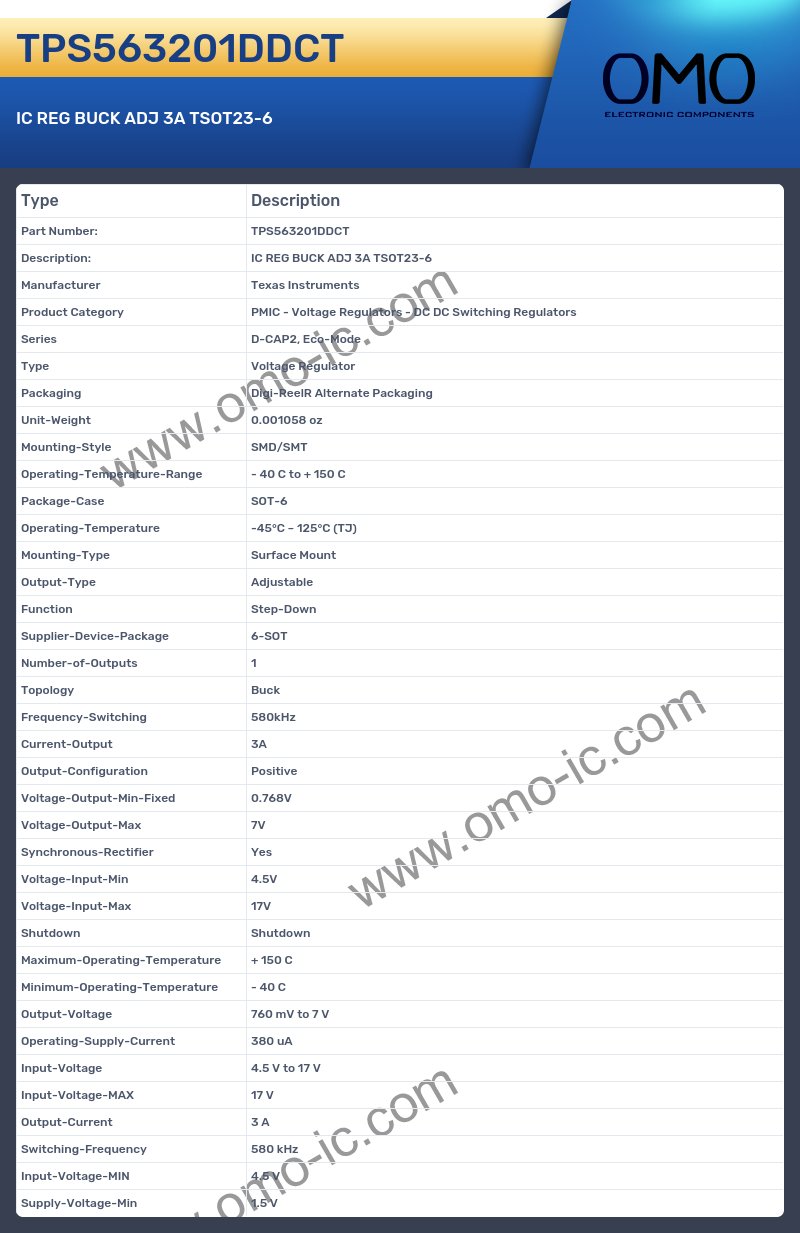

TPS563201DDCT Image

TPS563201DDCT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series D-CAP2, Eco-Mode
• Type Voltage Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case SOT-6
• Operating-Temperature -45°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 6-SOT
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 580kHz
• Current-Output 3A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.768V
• Voltage-Output-Max 7V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 17V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 760 mV to 7 V
• Operating-Supply-Current 380 uA
• Input-Voltage 4.5 V to 17 V
• Input-Voltage-MAX 17 V
• Output-Current 3 A
• Switching-Frequency 580 kHz
• Input-Voltage-MIN 4.5 V
• Supply-Voltage-Min 1.5 V
