TPS56520PWP

TPS56520PWP Overview

Product belongs to the SWIFT, D-CAP2, Eco-Mode series. Tube Alternate Packaging is the packaging method for this product 20-TSSOP (0.173", 4.40mm Width) Exposed Pad Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable (Programmable) Product function is Step-Down. Supplier device package: 20-HTSSOP Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.6V . The value of Yes is included as a product attribute. The minimum input voltage is 4.5V. The 17V.

TPS56520PWP Image

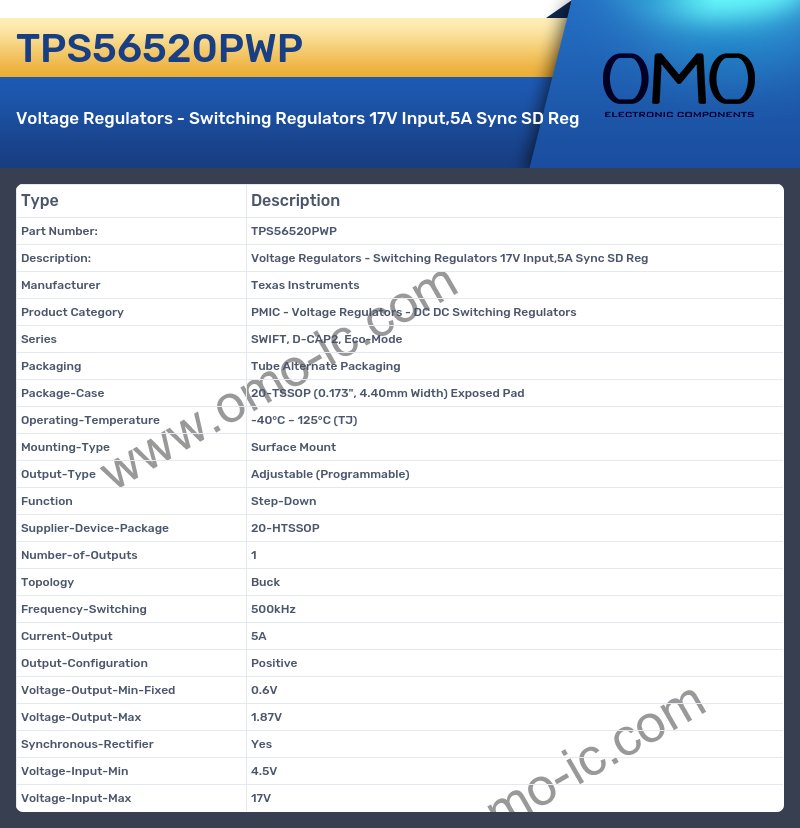

TPS56520PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SWIFT, D-CAP2, Eco-Mode
• Packaging Tube Alternate Packaging
• Package-Case 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable (Programmable)
• Function Step-Down
• Supplier-Device-Package 20-HTSSOP
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 500kHz
• Current-Output 5A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.6V
• Voltage-Output-Max 1.87V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 17V
