TPS61182RTET

TPS61182RTET Overview

Product belongs to the TPS61182 series. Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style WQFN-16 This product's 1.3MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Current Mode Versatile Backlight applications for maximum usability Supplier device package: 16-WQFN (3x3) Number-of-Outputs: 6 Current-Output-Channel is 25mA This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 24V. The minimum 5V required for voltage supply. Output voltage: 38V Dimming control is done through PWM communication. Power-off control: 2050 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The operating frequency is 1.3 MHz. Input Voltage Range: 5 V to 24 V Output current: 1.5 A Maximum supply current: 3 mA The TPS61182EVM-259. 25 mA low-level output current

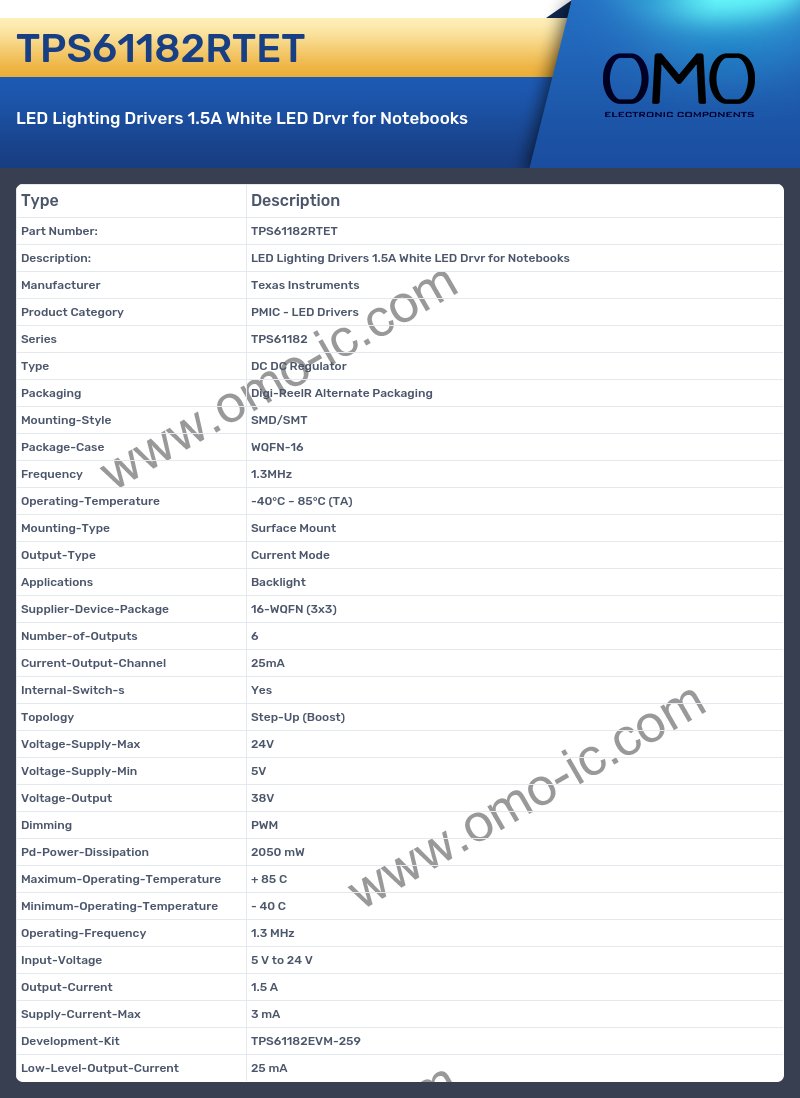

TPS61182RTET Image

TPS61182RTET Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TPS61182
• Type DC DC Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case WQFN-16
• Frequency 1.3MHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Current Mode
• Applications Backlight
• Supplier-Device-Package 16-WQFN (3x3)
• Number-of-Outputs 6
• Current-Output-Channel 25mA
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 24V
• Voltage-Supply-Min 5V
• Voltage-Output 38V
• Dimming PWM
• Pd-Power-Dissipation 2050 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 1.3 MHz
• Input-Voltage 5 V to 24 V
• Output-Current 1.5 A
• Supply-Current-Max 3 mA
• Development-Kit TPS61182EVM-259
• Low-Level-Output-Current 25 mA
