TPS70950DBVT

TPS70950DBVT Overview

Product belongs to the TPS709 series. Digi-ReelR is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 30V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: - Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 30 V Output current: 150 mA The product's 2.7 V is 5.1 V. Load regulation is 20 mV. This product's 3 mV is 0.01 %/V. The product's 80 dB is -20 dB.

TPS70950DBVT Image

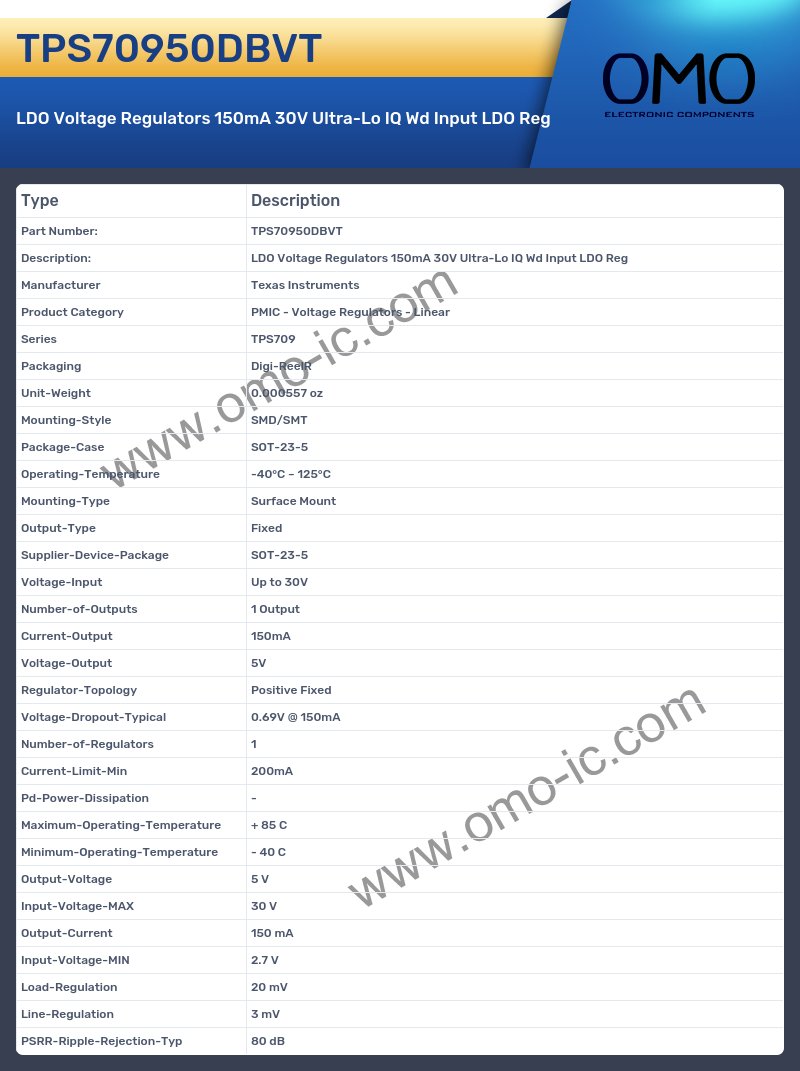

TPS70950DBVT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS709
• Packaging Digi-ReelR
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 30V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.69V @ 150mA
• Number-of-Regulators 1
• Current-Limit-Min 200mA
• Pd-Power-Dissipation -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 30 V
• Output-Current 150 mA
• Input-Voltage-MIN 2.7 V
• Load-Regulation 20 mV
• Line-Regulation 3 mV
• PSRR-Ripple-Rejection-Typ 80 dB
