TPS71709DSET

TPS71709DSET Overview

Product belongs to the TPS71709 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000208 oz SMD/SMT Mounting-Style WSON-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 6-WSON (1.5x1.5) 2.5 V ~ 6.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 0.9V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.485 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 900 mV Maximum Input Voltage: 6.5 V Output current: 150 mA The product's + 2.5 V is 5.1 V. Load regulation is 120 uV / mA. The voltage regulation accuracy of this product is 3 %. Input bias current of 50 uA The 0.17 V at 150 mA. This product's 125 uV / V is 0.01 %/V.

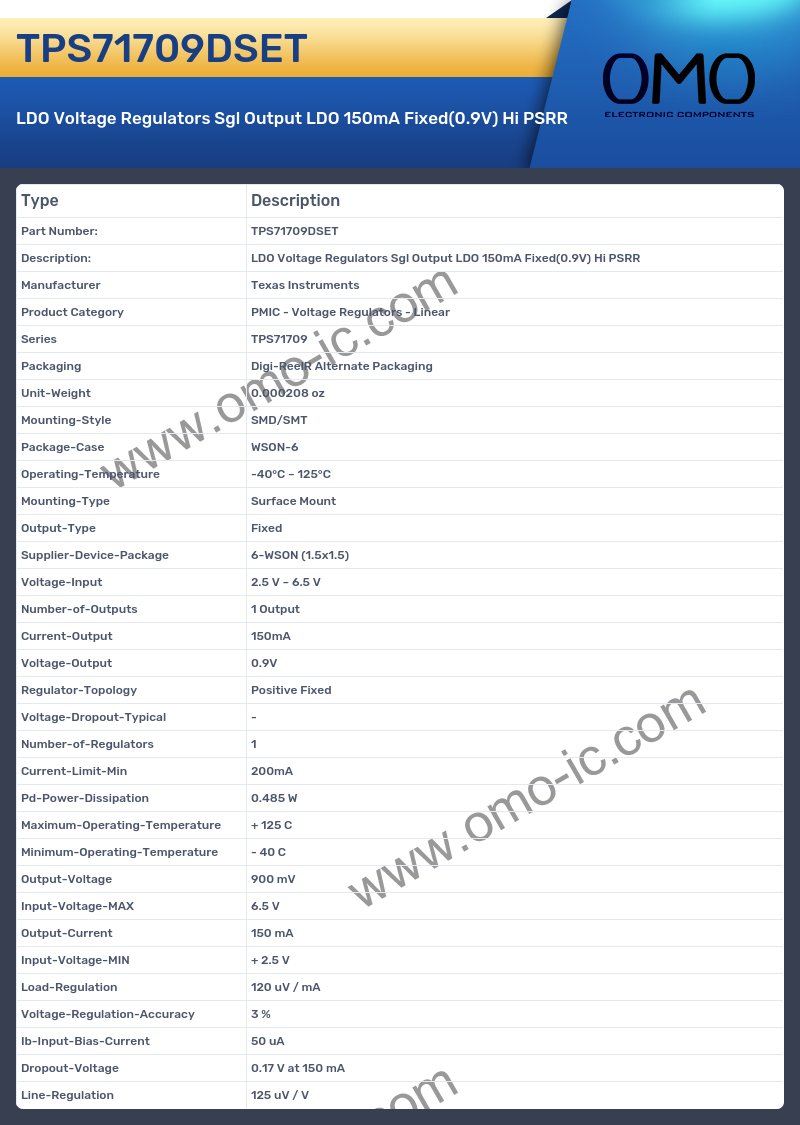

TPS71709DSET Image

TPS71709DSET Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS71709
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000208 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 6-WSON (1.5x1.5)
• Voltage-Input 2.5 V ~ 6.5 V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 0.9V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min 200mA
• Pd-Power-Dissipation 0.485 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 900 mV
• Input-Voltage-MAX 6.5 V
• Output-Current 150 mA
• Input-Voltage-MIN + 2.5 V
• Load-Regulation 120 uV / mA
• Voltage-Regulation-Accuracy 3 %
• Ib-Input-Bias-Current 50 uA
• Dropout-Voltage 0.17 V at 150 mA
• Line-Regulation 125 uV / V
