TPS72010DRVT

TPS72010DRVT Overview

Product belongs to the TPS72010 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style WSON-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 6-SON (2x2) 1.1 V ~ 4.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 1V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 845 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1 V Maximum Input Voltage: 4.5 V Output current: 350 mA The product's 1.1 V is 5.1 V. Load regulation is - 15 uV/mA. The voltage regulation accuracy of this product is 2 %. The maximum 200 mV is 360 mV. This product's 16 uV/V is 0.01 %/V. The product's 85 dB is -20 dB.

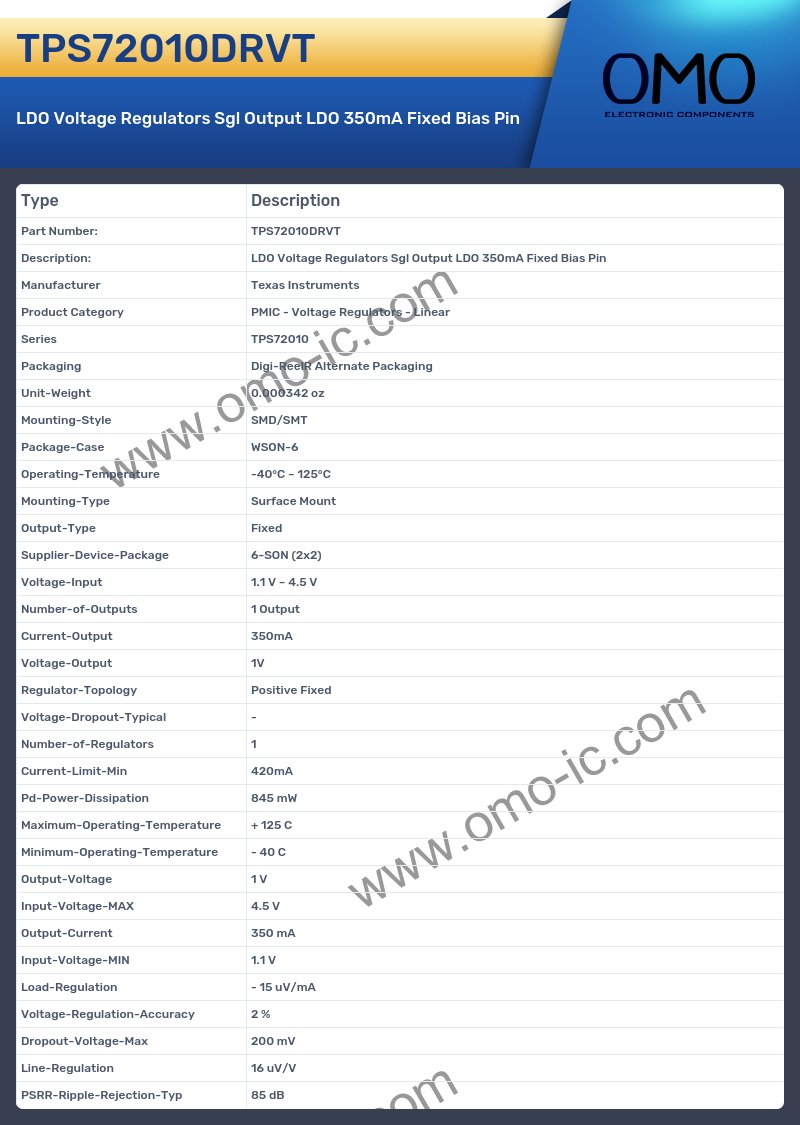

TPS72010DRVT Image

TPS72010DRVT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS72010
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 6-SON (2x2)
• Voltage-Input 1.1 V ~ 4.5 V
• Number-of-Outputs 1 Output
• Current-Output 350mA
• Voltage-Output 1V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min 420mA
• Pd-Power-Dissipation 845 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1 V
• Input-Voltage-MAX 4.5 V
• Output-Current 350 mA
• Input-Voltage-MIN 1.1 V
• Load-Regulation - 15 uV/mA
• Voltage-Regulation-Accuracy 2 %
• Dropout-Voltage-Max 200 mV
• Line-Regulation 16 uV/V
• PSRR-Ripple-Rejection-Typ 85 dB
