TPS73601MDCQREP

TPS73601MDCQREP Overview

Product belongs to the TPS73601-EP series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004265 oz SMD/SMT Mounting-Style SOT-223-6 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-223-6 1.7 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2 V ~ 5.5 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 2.22 W Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output voltage: 1.2 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 400 mA The product's + 1.7 V is 5.1 V. Load regulation is 0.002 % / mA. The voltage regulation accuracy of this product is 0.5 %. This product is also known as V62/06626-01YE and can be referred to by either part number. Reference voltage is 1.2 V . The 0.075 V at 400 mA. The maximum 200 mV at 400 mA is 360 mV. This product's 0.01 % / V is 0.01 %/V.

TPS73601MDCQREP Image

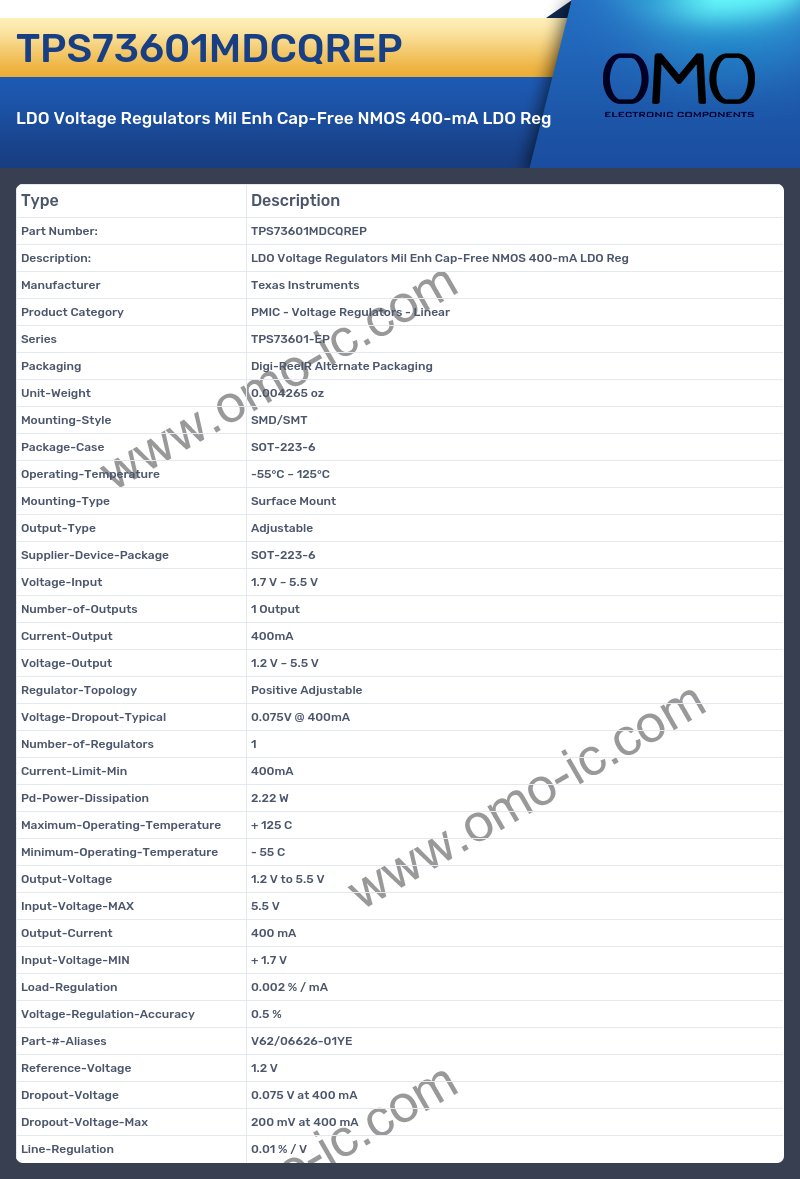

TPS73601MDCQREP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS73601-EP
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004265 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223-6
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package SOT-223-6
• Voltage-Input 1.7 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 400mA
• Voltage-Output 1.2 V ~ 5.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.075V @ 400mA
• Number-of-Regulators 1
• Current-Limit-Min 400mA
• Pd-Power-Dissipation 2.22 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage 1.2 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 400 mA
• Input-Voltage-MIN + 1.7 V
• Load-Regulation 0.002 % / mA
• Voltage-Regulation-Accuracy 0.5 %
• Part-#-Aliases V62/06626-01YE
• Reference-Voltage 1.2 V
• Dropout-Voltage 0.075 V at 400 mA
• Dropout-Voltage-Max 200 mV at 400 mA
• Line-Regulation 0.01 % / V
