TPS77533DR

TPS77533DR Overview

Product belongs to the TPS77533 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Up to 10V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.904 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Maximum Input Voltage: 10 V Output current: 500 mA The product's + 2.7 V is 5.1 V. Load regulation is 3 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 85 uA The 0.169 V at 500 mA. The maximum 287 mV at 500 mA is 360 mV. This product's 0.01 % / V is 0.01 %/V.

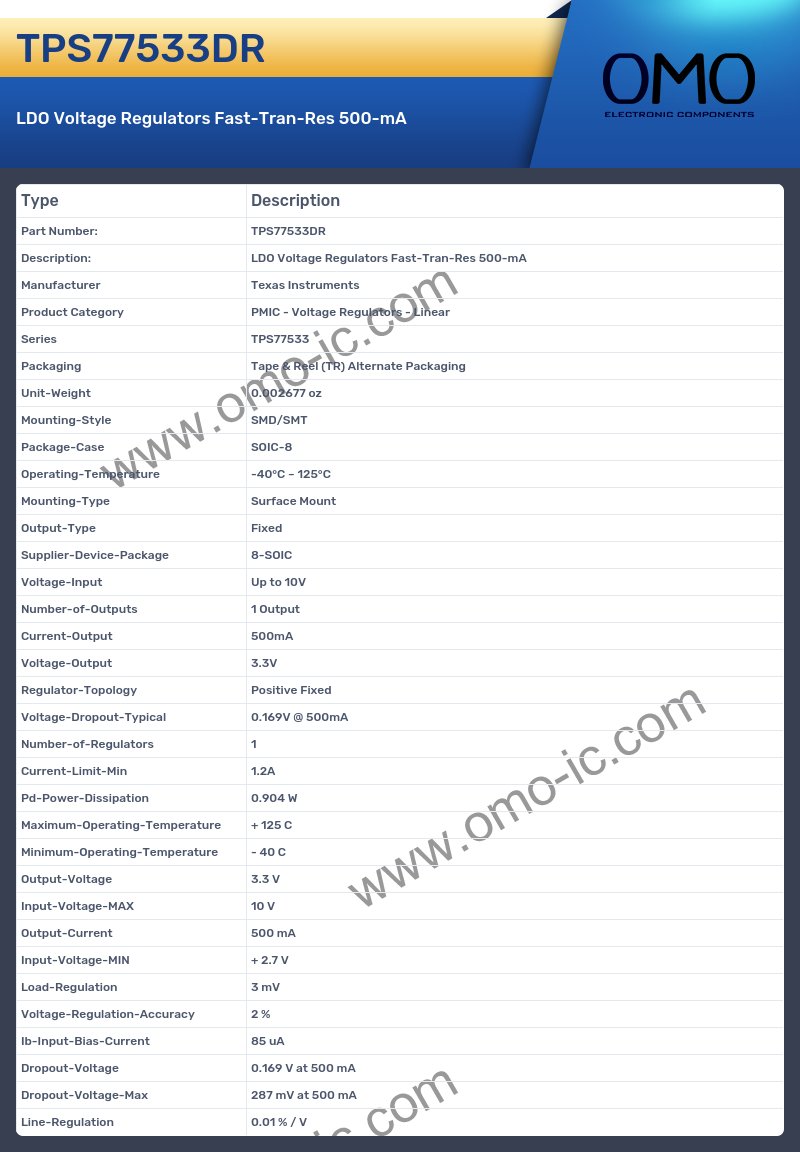

TPS77533DR Image

TPS77533DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS77533
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Voltage-Input Up to 10V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.169V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min 1.2A
• Pd-Power-Dissipation 0.904 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 10 V
• Output-Current 500 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 3 mV
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 85 uA
• Dropout-Voltage 0.169 V at 500 mA
• Dropout-Voltage-Max 287 mV at 500 mA
• Line-Regulation 0.01 % / V
