TPS79301DBVR

TPS79301DBVR Overview

Product belongs to the TPS79301 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 150°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-6 2.7 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.22 V ~ 5.5 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 0.56 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 1.22 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 200 mA The product's + 2.7 V is 5.1 V. Load regulation is 5 mV. The voltage regulation accuracy of this product is 2 %. The TPS79301EVM. Input bias current of 170 uA Reference voltage is 1.225 V . The 0.077 V at 200 mA. The maximum 200 mV is 360 mV. This product's 0.05 % / V is 0.01 %/V.

TPS79301DBVR Image

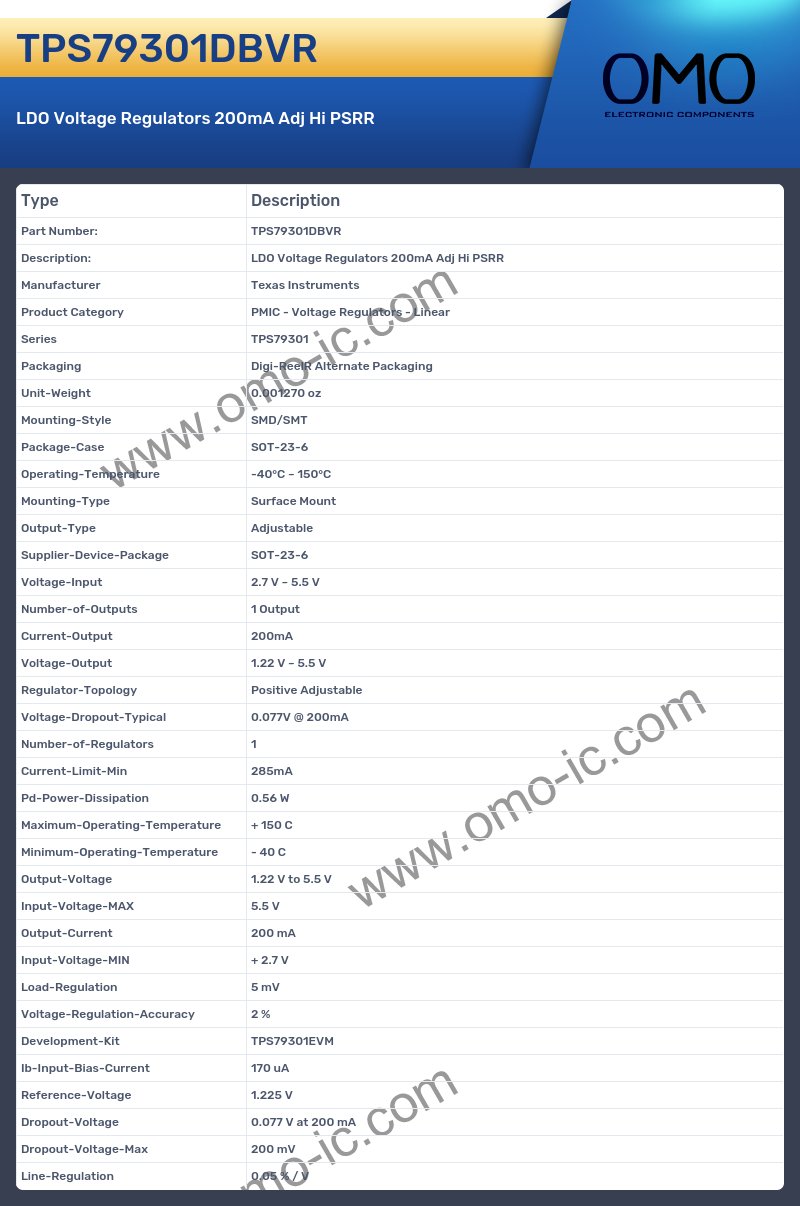

TPS79301DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS79301
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 150°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package SOT-23-6
• Voltage-Input 2.7 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output 1.22 V ~ 5.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.077V @ 200mA
• Number-of-Regulators 1
• Current-Limit-Min 285mA
• Pd-Power-Dissipation 0.56 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.22 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 200 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 5 mV
• Voltage-Regulation-Accuracy 2 %
• Development-Kit TPS79301EVM
• Ib-Input-Bias-Current 170 uA
• Reference-Voltage 1.225 V
• Dropout-Voltage 0.077 V at 200 mA
• Dropout-Voltage-Max 200 mV
• Line-Regulation 0.05 % / V
