TPS79901DRVR

TPS79901DRVR Overview

Product belongs to the TPS79901 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style WSON-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 6-SON (2x2) 2.7 V ~ 6.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2 V ~ 6.5 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 1.54 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V to 6.5 V Maximum Input Voltage: 6.5 V Output current: 200 mA The product's + 2.7 V is 5.1 V. Load regulation is 0.002 % / mA. The voltage regulation accuracy of this product is 1 %. Input bias current of 40 uA Reference voltage is 1.193 V . The 0.1 V at 200 mA. The maximum 175 mV at 200 mA is 360 mV. This product's 0.02 % / V is 0.01 %/V.

TPS79901DRVR Image

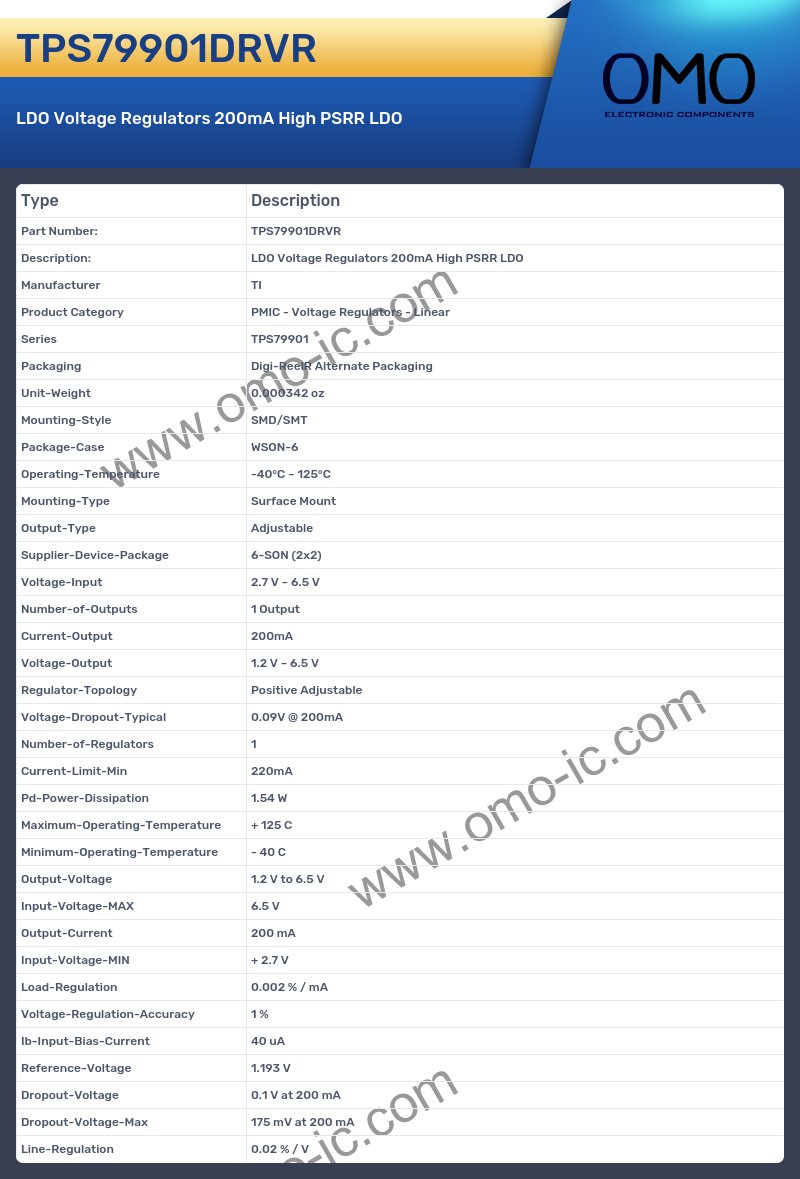

TPS79901DRVR Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS79901
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 6-SON (2x2)
• Voltage-Input 2.7 V ~ 6.5 V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output 1.2 V ~ 6.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.09V @ 200mA
• Number-of-Regulators 1
• Current-Limit-Min 220mA
• Pd-Power-Dissipation 1.54 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V to 6.5 V
• Input-Voltage-MAX 6.5 V
• Output-Current 200 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 0.002 % / mA
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 40 uA
• Reference-Voltage 1.193 V
• Dropout-Voltage 0.1 V at 200 mA
• Dropout-Voltage-Max 175 mV at 200 mA
• Line-Regulation 0.02 % / V
