TS110-8A1-AP

TS110-8A1-AP Overview

Product belongs to the - series. Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-226-3, TO-92-3 (TO-226AA) Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: * 12mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 800mV 100μA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 800mA Current-On-State-It-AV-Max 1.25A is the maximum Current-On-State-It-RMS. 1μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 20A, 21A for 50-60Hz Itsm. SCR-Type: Sensitive Gate; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 800 V Rated Repetitive Off-State Voltage VDRM; 12 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 800 mV on this product. Gate-Trigger-Current-Igt: 100 uA; 1.25 A RMS Current On-State 20 A Non-Repetitive On-State Current The 100 uA Off-State Leakage Current in VDRM and IDRM.

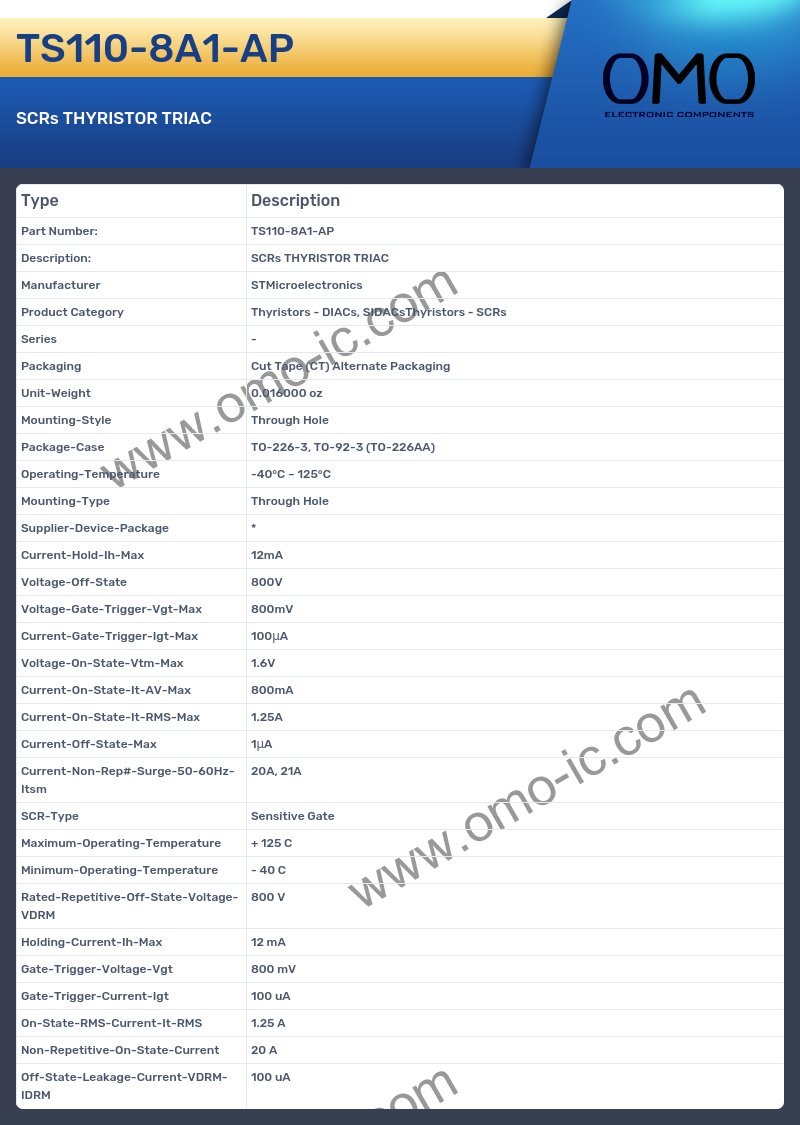

TS110-8A1-AP Image

TS110-8A1-AP Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - DIACs, SIDACsThyristors - SCRs
• Series -
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-226-3, TO-92-3 (TO-226AA)
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package *
• Current-Hold-Ih-Max 12mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 800mV
• Current-Gate-Trigger-Igt-Max 100μA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 800mA
• Current-On-State-It-RMS-Max 1.25A
• Current-Off-State-Max 1μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 20A, 21A
• SCR-Type Sensitive Gate
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 800 V
• Holding-Current-Ih-Max 12 mA
• Gate-Trigger-Voltage-Vgt 800 mV
• Gate-Trigger-Current-Igt 100 uA
• On-State-RMS-Current-It-RMS 1.25 A
• Non-Repetitive-On-State-Current 20 A
• Off-State-Leakage-Current-VDRM-IDRM 100 uA
