TS391ILT

TS391ILT Overview

Product belongs to the TS391 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-23-5L Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, DTL, ECL, Open-Collector, TTL Number of channels: 1 Channel Supplier device package: SOT-23-5 Voltage supply range: 2 V ~ 36 V, ±1 V ~ 18 V 1 element 1.25mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 1.3 us response time Power-off control: No Shutdown Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 500 uA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 2 V General Purpose comparator type Input bias current of 250 nA The 5 mV. The 150 nA. The Negative Rail to Positive Rail - 1.5 V. 4 mA

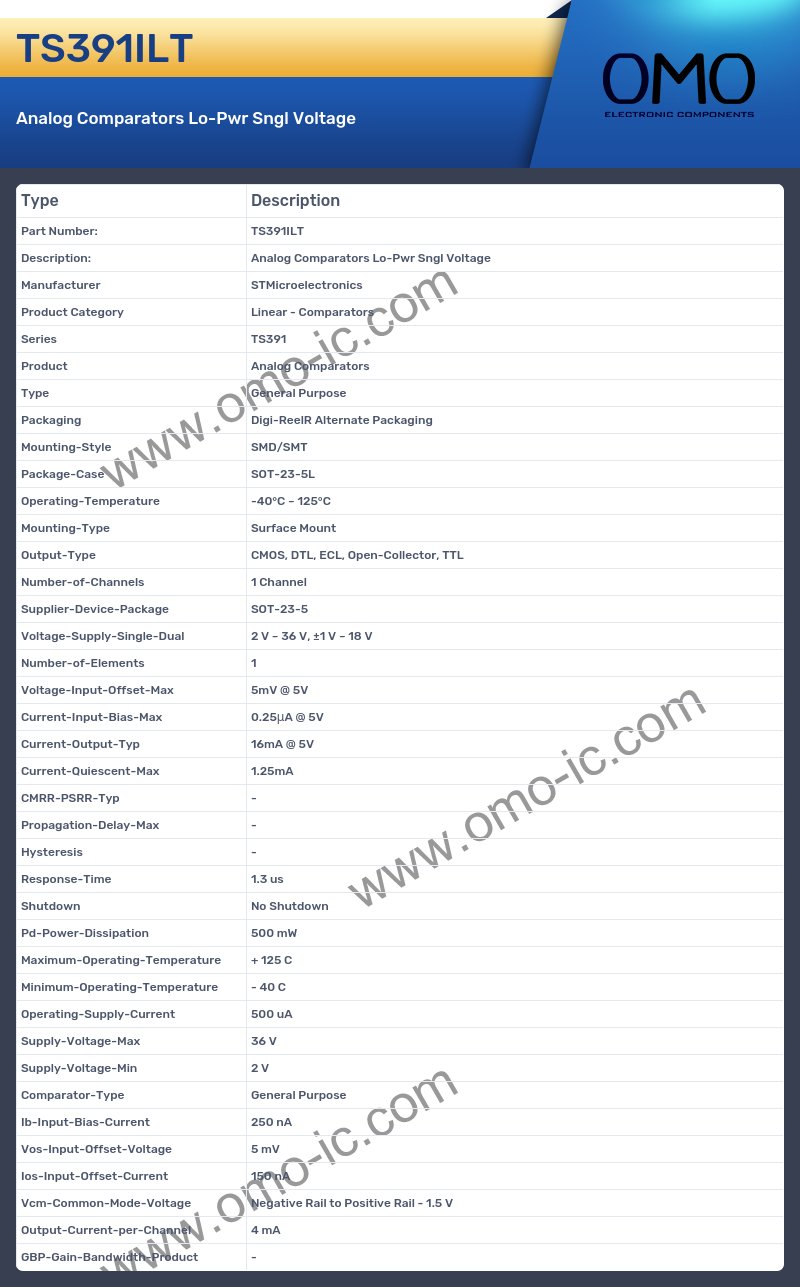

TS391ILT Image

TS391ILT Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series TS391
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5L
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, DTL, ECL, Open-Collector, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-23-5
• Voltage-Supply-Single-Dual 2 V ~ 36 V, ±1 V ~ 18 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 5mV @ 5V
• Current-Input-Bias-Max 0.25μA @ 5V
• Current-Output-Typ 16mA @ 5V
• Current-Quiescent-Max 1.25mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 1.3 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 500 uA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 2 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 250 nA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 150 nA
• Vcm-Common-Mode-Voltage Negative Rail to Positive Rail - 1.5 V
• Output-Current-per-Channel 4 mA
• GBP-Gain-Bandwidth-Product -
