TS821BILT

TS821BILT Overview

Product belongs to the TS821 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style SOT-23-3 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-3 Tolerance of ±0.5% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 1.225V . 120ppm/°C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 1.225 V 12 mA is 92 nA. Initial accuracy: 0.5 % Maximum shunt current of 12 mA This product has a minimum 0.045 mA of 50 uA.

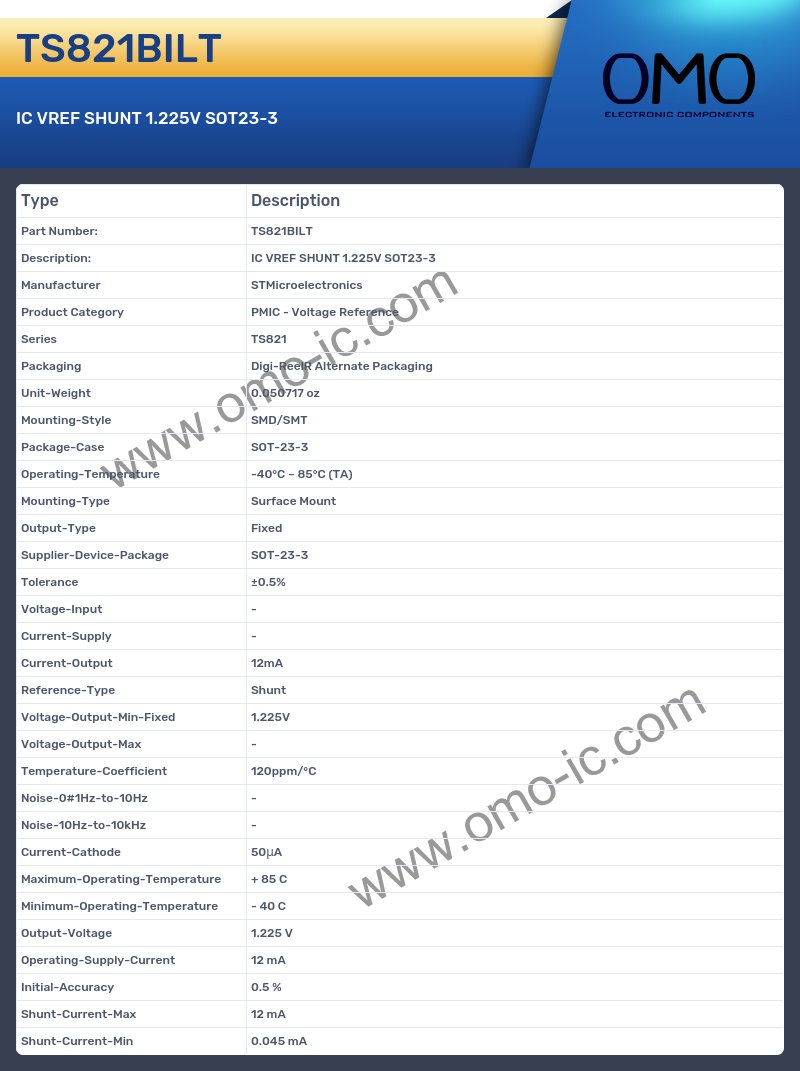

TS821BILT Image

TS821BILT Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Reference
• Series TS821
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-3
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-3
• Tolerance ±0.5%
• Voltage-Input -
• Current-Supply -
• Current-Output 12mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 1.225V
• Voltage-Output-Max -
• Temperature-Coefficient 120ppm/°C
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 50μA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.225 V
• Operating-Supply-Current 12 mA
• Initial-Accuracy 0.5 %
• Shunt-Current-Max 12 mA
• Shunt-Current-Min 0.045 mA
