TSH340ILT

TSH340ILT Overview

Product belongs to the TSH340 series. This product is categorized as Video Amplifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Surface Mount mounting type Output-Type: - Versatile Buffer applications for maximum usability Number of channels: 1 Channel Supplier device package: SOT-23-5 1 is 8. Voltage supply range: 3 V ~ 5.5 V This product has a 9.8mA of 200μA. The 320MHz The 780 V/μs. Current-Output-Channel is 87mA The amplifier is of Buffer Amplifier type. Power-off control: No Shutdown Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V Input bias current of 16 uA The 90 dB. 100 mA The 7 nV/sqrt Hz of this product is 110 nV/sqrt Hz. 6.02 dB voltage gain

TSH340ILT Image

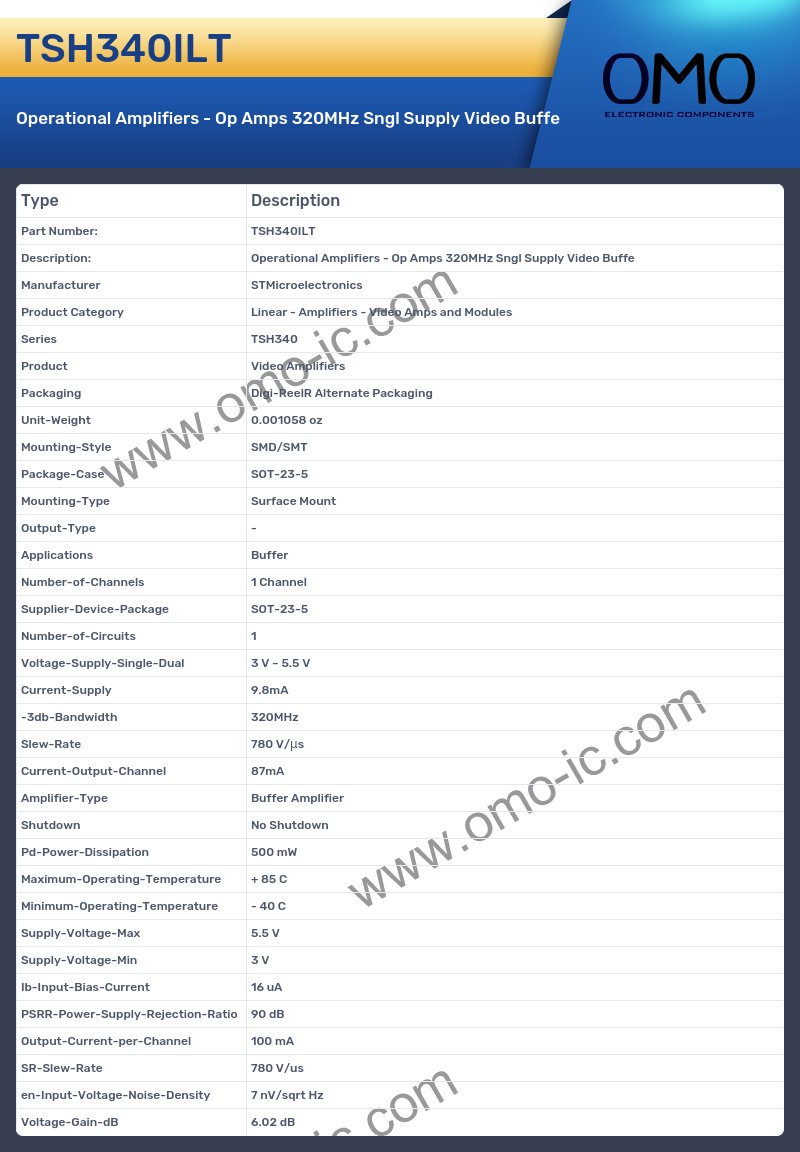

TSH340ILT Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series TSH340
• Product Video Amplifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Mounting-Type Surface Mount
• Output-Type -
• Applications Buffer
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-23-5
• Number-of-Circuits 1
• Voltage-Supply-Single-Dual 3 V ~ 5.5 V
• Current-Supply 9.8mA
• -3db-Bandwidth 320MHz
• Slew-Rate 780 V/μs
• Current-Output-Channel 87mA
• Amplifier-Type Buffer Amplifier
• Shutdown No Shutdown
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Ib-Input-Bias-Current 16 uA
• PSRR-Power-Supply-Rejection-Ratio 90 dB
• Output-Current-per-Channel 100 mA
• SR-Slew-Rate 780 V/us
• en-Input-Voltage-Noise-Density 7 nV/sqrt Hz
• Voltage-Gain-dB 6.02 dB
