TYN812TRG

TYN812TRG Overview

Product belongs to the TYN812 series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: TO-220AB 15mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1.3V 5mA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 8A Current-On-State-It-AV-Max 12A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 140A, 145A for 50-60Hz Itsm. SCR-Type: Standard Recovery; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 800 V Rated Repetitive Off-State Voltage VDRM; 15 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 5 mA; 125 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. Vf-Forward-Voltage: 1.6 V

TYN812TRG Image

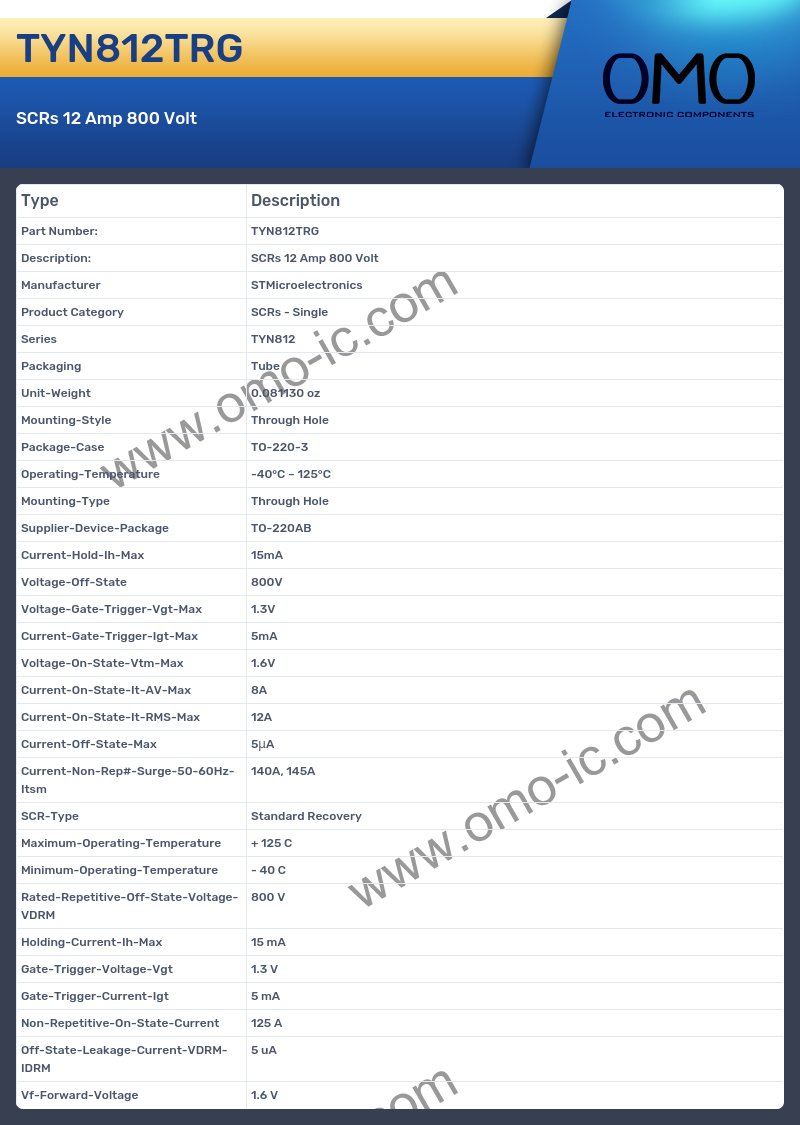

TYN812TRG Specifications

• Manufacturer STMicroelectronics
• Product Category SCRs - Single
• Series TYN812
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Current-Hold-Ih-Max 15mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 5mA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 8A
• Current-On-State-It-RMS-Max 12A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 140A, 145A
• SCR-Type Standard Recovery
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 800 V
• Holding-Current-Ih-Max 15 mA
• Gate-Trigger-Voltage-Vgt 1.3 V
• Gate-Trigger-Current-Igt 5 mA
• Non-Repetitive-On-State-Current 125 A
• Off-State-Leakage-Current-VDRM-IDRM 5 uA
• Vf-Forward-Voltage 1.6 V
