UC2705D

UC2705D Overview

Product belongs to the UC2705 series. This product is categorized as MOSFET Gate Drivers Type: Inverting Non-Inverting Tube is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style Configuration Single Number-of-Outputs: 1 Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 12 mA is 92 nA. Output current: 1.5 A This product has a 40 ns of 16 ns. This product has a 40 ns of 16 ns. Maximum supply voltage of 40 V Minimum supply voltage is 5 V SOIC-8 Number-of-Drivers: 1 Driver

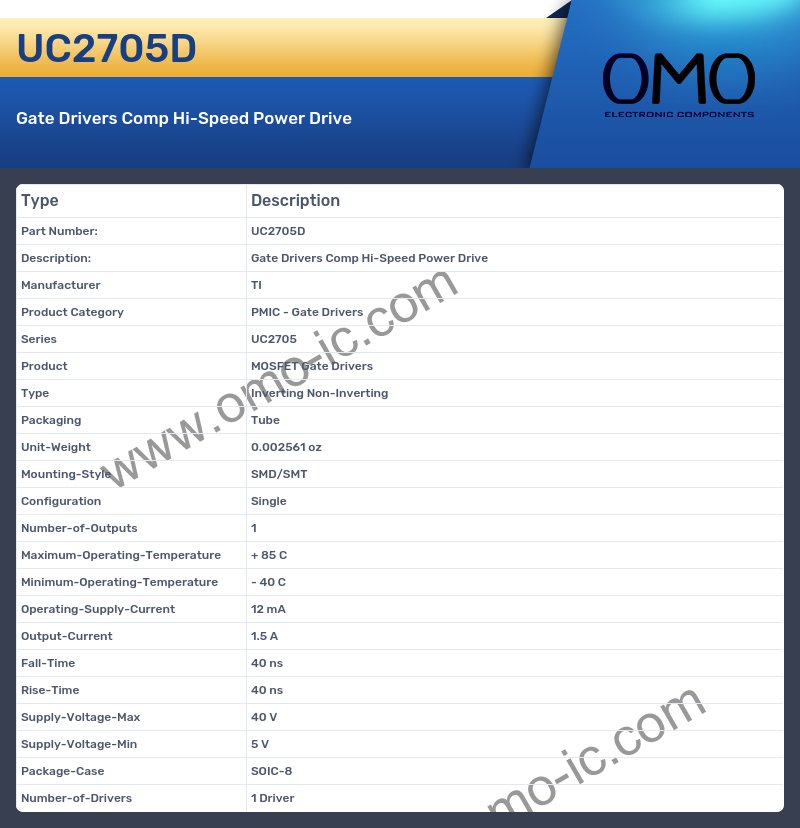

UC2705D Image

UC2705D Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series UC2705
• Product MOSFET Gate Drivers
• Type Inverting Non-Inverting
• Packaging Tube
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Configuration Single
• Number-of-Outputs 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 12 mA
• Output-Current 1.5 A
• Fall-Time 40 ns
• Rise-Time 40 ns
• Supply-Voltage-Max 40 V
• Supply-Voltage-Min 5 V
• Package-Case SOIC-8
• Number-of-Drivers 1 Driver
