UC28023NG4 Overview

Product belongs to the - series. Tube is the packaging method for this product 16-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 105°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-PDIP Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 9 V ~ 30 V This product features 'Frequency-Switching' at 340kHz ~ 460kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.9 The value of Yes is included as a product attribute. No enabled Serial Interfaces: -

UC28023NG4 Image

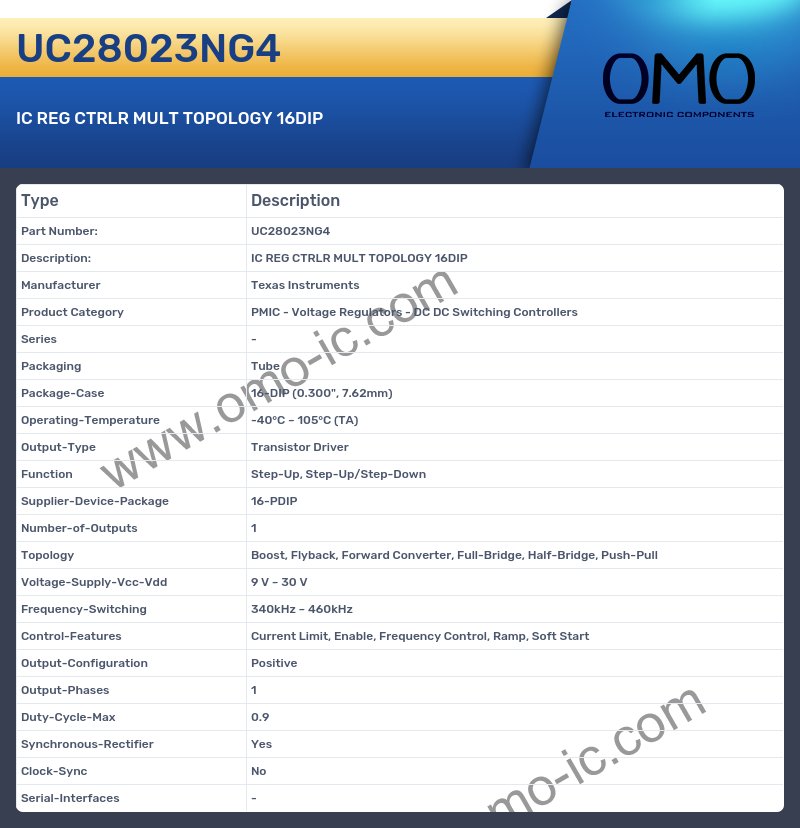

UC28023NG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 16-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 105°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 16-PDIP
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 9 V ~ 30 V
• Frequency-Switching 340kHz ~ 460kHz
• Control-Features Current Limit, Enable, Frequency Control, Ramp, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.9
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
