| Mfr. #: | UC2825DW |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | Switching Controllers High Speed PWM Controlle |
| ライフサイクル: | メーカー新製品 |
| データシート: | UC2825DW データシート |
Product belongs to the UC2825 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.016709 oz SMD/SMT Mounting-Style SOIC-16 Wide Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-SOIC Number-of-Outputs: 2 Topology: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 8.4 V ~ 30 V This product features 'Frequency-Switching' at 340kHz ~ 460kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 50 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output current: 1500 mA Switching frequency is 1000 kHz This product has a 30 ns of 16 ns. This product has a 30 ns of 16 ns.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

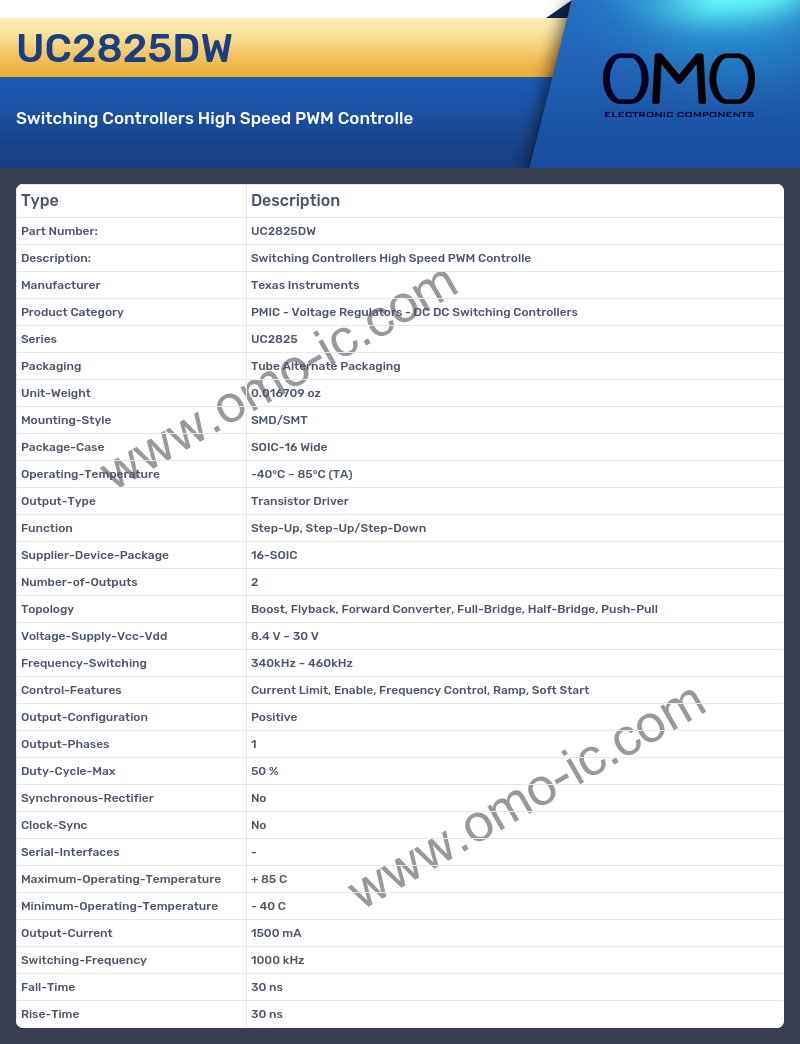

UC2825DW Specifications
A: At what frequency does the Series?
Q: The product Series is UC2825.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.016709 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-16 Wide
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 85°C (TA).
A: What is the Output-Type of the product?
Q: The Output-Type of the product is Transistor Driver.
A: At what frequency does the Function?
Q: The product Function is Step-Up, Step-Up/Step-Down.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 16-SOIC
A: What is the Number-of-Outputs of the product?
Q: The Number-of-Outputs of the product is 2.
A: What is the Topology of the product?
Q: The Topology of the product is Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull.
A: What is the Voltage-Supply-Vcc-Vdd of the product?
Q: The Voltage-Supply-Vcc-Vdd of the product is 8.4 V ~ 30 V.
A: Is the cutoff frequency of the product Frequency-Switching?
Q: Yes, the product's Frequency-Switching is indeed 340kHz ~ 460kHz
A: At what frequency does the Control-Features?
Q: The product Control-Features is Current Limit, Enable, Frequency Control, Ramp, Soft Start.
A: At what frequency does the Output-Configuration?
Q: The product Output-Configuration is Positive.
A: At what frequency does the Output-Phases?
Q: The product Output-Phases is 1.
A: Is the cutoff frequency of the product Duty-Cycle-Max?
Q: Yes, the product's Duty-Cycle-Max is indeed 50 %
A: What is the Synchronous-Rectifier of the product?
Q: The Synchronous-Rectifier of the product is No.
A: Is the cutoff frequency of the product Clock-Sync?
Q: Yes, the product's Clock-Sync is indeed No
A: What is the Serial-Interfaces of the product?
Q: The Serial-Interfaces of the product is -.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: Is the cutoff frequency of the product Output-Current?
Q: Yes, the product's Output-Current is indeed 1500 mA
A: What is the Switching-Frequency of the product?
Q: The Switching-Frequency of the product is 1000 kHz.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 30 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 30 ns.
